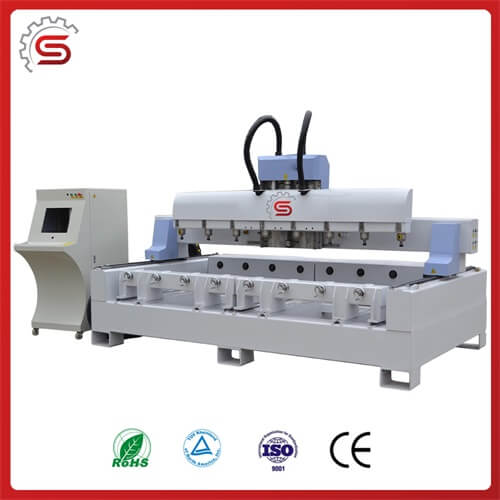

STR3012-8S 4 Axis CNC Router carving machine
- Products Introduction:1.The bed lathe is made of heavy duty&
- Hotline: 86-532-67703247
- Fax: 86-532-68067870
- Email:mike@sinosteeler.com
Detail
Contact Us
Products Introduction:
1.The bed lathe is made of heavy duty structure, analyzed and designed with FEA, relieving stress, so the working table is more
stable.
2.Three linear bearing to drive the Y shaft, which improve speed and more stable, it can cut repeatedly. Moreover, the Y shaft can
move with higher resolution and more stable.
3.X,Y,Z Axis Line Rails and+ Ball Screw Transmitting. Higher Resolution and Speed, more powerful cutting that can save the cost and improve the efficiency in heavy cutting. We use PMI Square Rails and Ball Screw
4.The Y axis can move and the machine can do 4Axis work with the A axis(Rotary axis).
5.With High speed spindles that can do mass production work, highly save the time and improve the efficiency in working.
6. The Max. Processing speed can reach 20000mm/min, Max. traveling speed can reach 45000mm/min.
Application:
This column Engraving Machine is the best choice for processing column wood materials, rosewood, legs of table, chairs, staircase, sculpture of Buddha, the stature of people.
Technical Parameter:
Model | STR3012-8S 4 Axis CNC Router(8 Spindles) |
X,Y ,Z Processing Size | 300mmΧ1200mmΧ8(Length *Diameter) |
X,Z Processing resolution | ±0.01/300mm |
X,Z Reposition Resolution | ±0.01mm |
X、Y、Z Control Resolution Ratio | 0.0001mm |
Rotary Axis Reposition Resolution | 4〃 |
Engraving Cylinder Length | 1200mm |
Max. Processing Weight of each | 60KG |
Max. Engraving Speed | 20000mm/min |
Engraving Cylinder diameter | ≦300mm(8 Pieces work) |
Structure | Heavy Duty Steel Tube Structure, Steel Gantry, |
Spindle Power | 8 Spindles(2.2KW Water Cooling Spindle) |
Spindle Rotating Speed | 6000- 24000rpm |
Motors | Taiwan Servo Motors and Drivers |
Running Speed | 1m/min---35m/min |
Voltage | 380V，50HZ |
Bits | ER32，Ф3.175mm---Ф8mm； |
Control System | 4 Axis Original Ncstudio System( Original Software) |
Software | Type3/Artcam/Ucancam/Caxa/Mastercam/UG/wentai/JD |
Format | G code |
Transmitting System | Taiwan AMT high-precision Zero clearance square compound Sliding Linear Guide rail Pair ,Taiwan PMI Ball screw |
Weight | 2500KG |
Package Size | 4330mm*2200mm*2580mm(X *Y*Z) |
Surroundings | Temperature: 0-45℃; humidity:30%-75% |
Product Details:

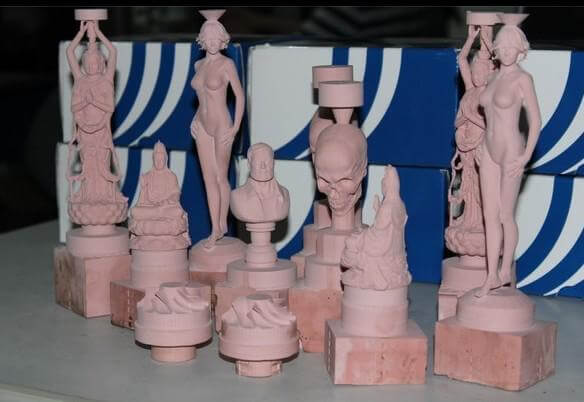

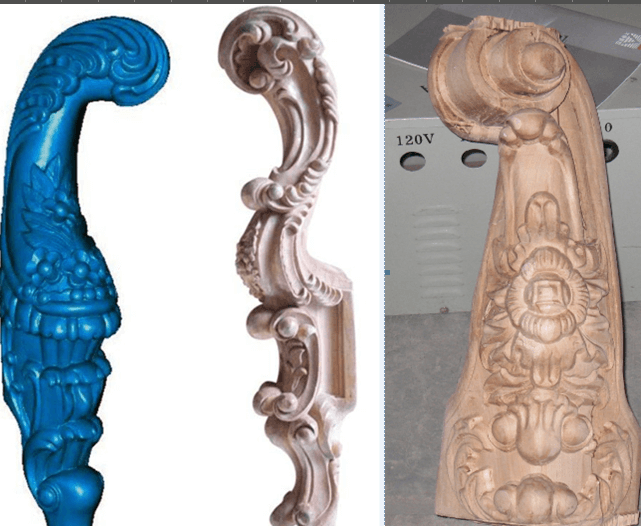

The sample:
Packaging & Shipping：
1.The Packaging Details:Stretch film with wooden case or as your request!
2.Shipping:We have rich experience in exporting machines to the world and can supply all kinds of different shipping terms!
3.Timely delivery and transportation
Our Services：
1.Good after-sale Services is our strength
1) The machine guarantee is 12 months.
2) 24 hours technical support by email or calling.
3) Friendly English version manual and operation video CD disc.
4)Our engineers can provide services to overseas.
2.Main Market
Which have been exported to a lot of country and Regions . Such as Europe , Russia, Southeast Asia . Middle East . North America and south America , Australia .
3.Sample Service:
If you want to test the performance of machine ,we can sent sample to you with cost offer .
4.Customized Service:
Our factory has been specialized in producing woodworking machines for over 33 years .We have very high research and development capabilities to meet the requirements of custom.
5.We have years of manufacturing woodworking machine,OEM and ODM service available.
