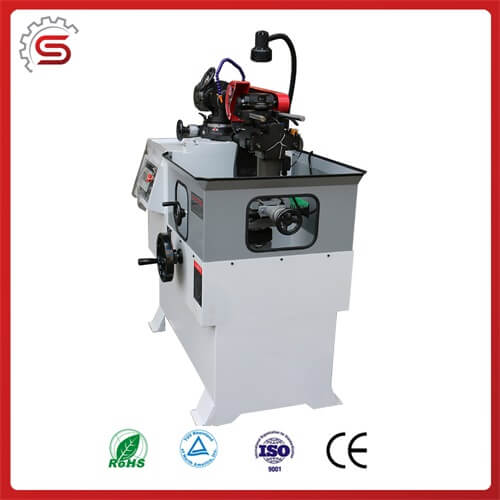

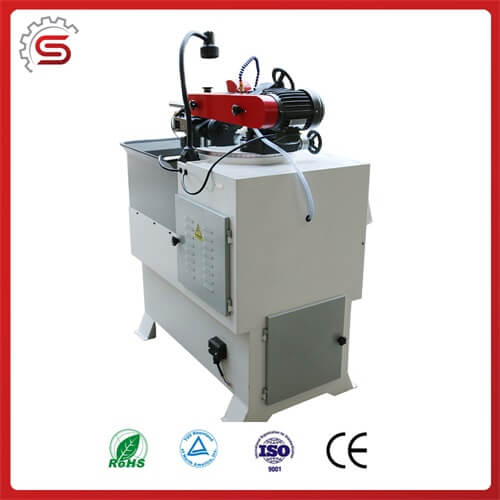

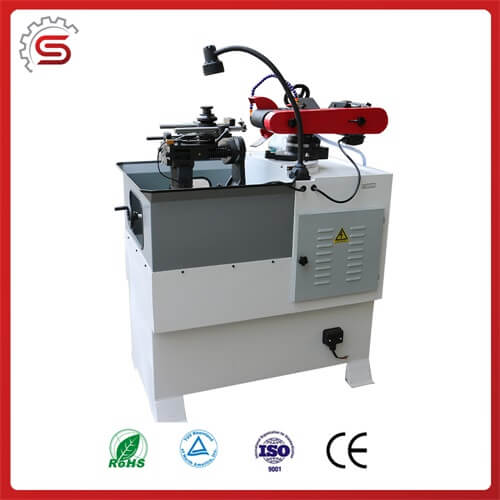

MG127B Hot Selling China High Efficiency Sharpening Machine

  • Applications:This machine mainly used for grinding carbide cuttin
  • Hotline: 86-532-67703247
  • Fax: 86-532-68067870
  • Email:mike@sinosteeler.com
  • Detail

  • Contact Us

Applications:

This machine mainly used for grinding carbide cutting circular saw blades of various angles. The use of gold just stone grinding wheel, grinding carbide circular saw blades to the tooth surface, the top teeth, tooth bevel , bevel gear, such as the top. Wide applicability, operation simple and flexible, positioning accurate, saw diameter, angle, pitch adjustment to facilitate the importation of Corresponding data, auto-complete processing, the data part of good regulation, but also grinding Carbide circular saw blades for cutting a variety of angles.

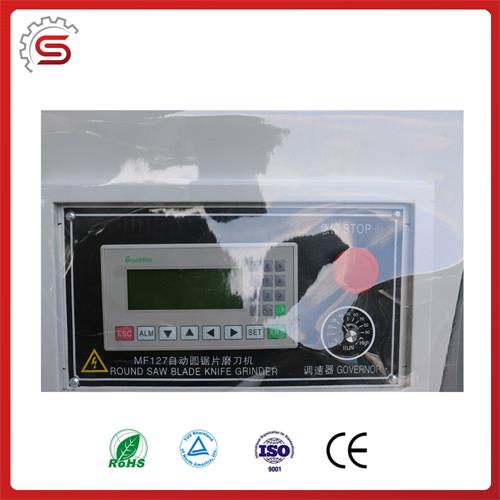

Road, part of the Electrical and control system using PLC, simplifying the traditional button control switch. Through man-machine interface Set operation, easy to learn, convenient, high reliability and automatic power-down data protection, flexible and convenient.

Technical  Parameters:

Model

MG127B

Diameter of grinding saw blade

¢125-¢630mm

Applicable grinding saw blade aperture

¢20/¢22/¢25.4/¢30/¢40/¢50

Max.sawtooth depth

8mm

Max. grinding wheel diameter

150mm

Grinding wheel specifications

¢16/¢32mm

Max. angle

30 degree

Grinding wheel Spindle Rotate speed

3500r/min

Grinding wheel motor power

370w

Feed motor power

60w

Electric motor power speed

0-24 tooth/min (stepless speed)

Overall size

1100x850x1380mm

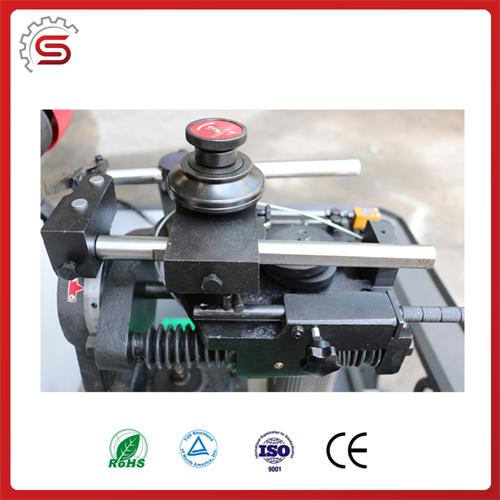

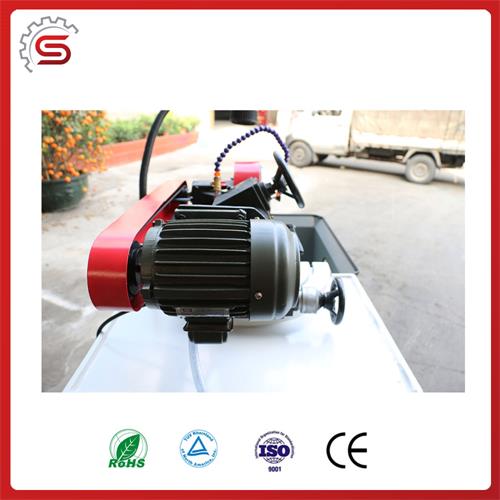

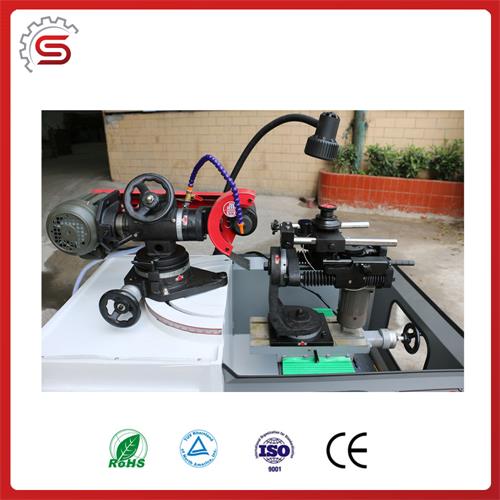

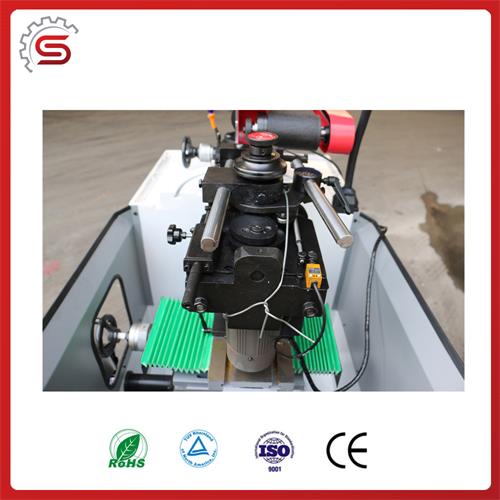

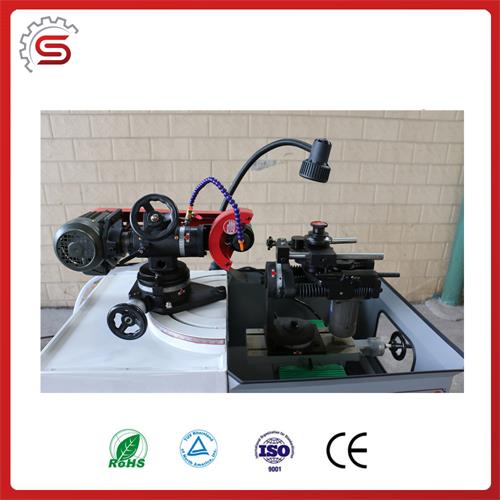

Product Details:


Packaging & Shipping

1.The Packaging Details: Stretch film with wooden case or as your request



2.Shipping:We have rich experience in exporting machines to the world and can supply all kinds of different shipping terms!



3.Timely delivery and transportation包装6宫格.jpg




Our Services

1.Good after-sale Services is our strength

1) The machine guarantee is 12 months.

2) 24 hours technical support by email or calling.

3) Friendly English version manual and operation video CD disc.

4)Our engineers can provide services to overseas.

2.Main Market

Which have been exported to a lot of country and Regions . Such as Europe , Russia, Southeast Asia . Middle East . North America  and south America , Australia .

3.Sample Service :

If you want to test the performance of machine ,we can sent sample to you with cost offer .

4.Customized Service :

Our factory has been specialized in producing woodworking machines for over 33 years .We have very high research and development capabilities to meet the requirements of custom.

5.We have years of manufacturing woodworking machine,OEM and ODM service available.
