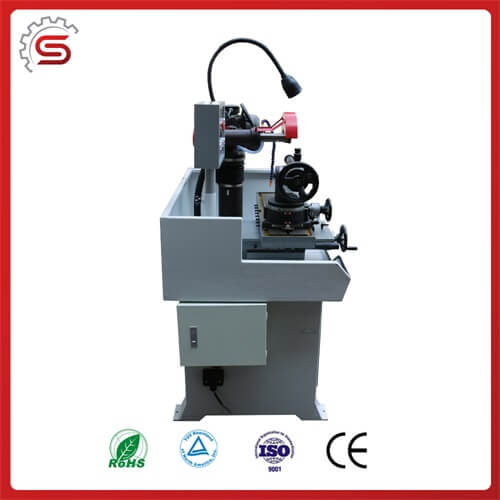

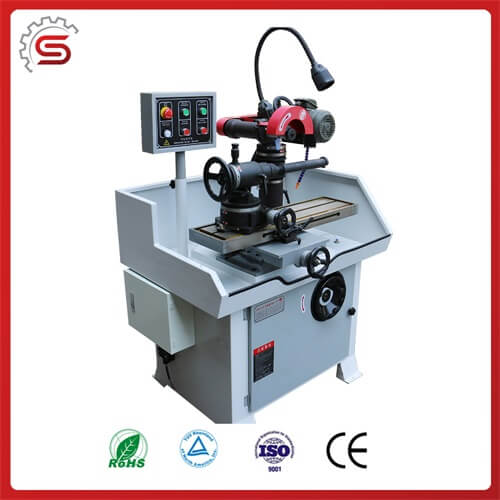

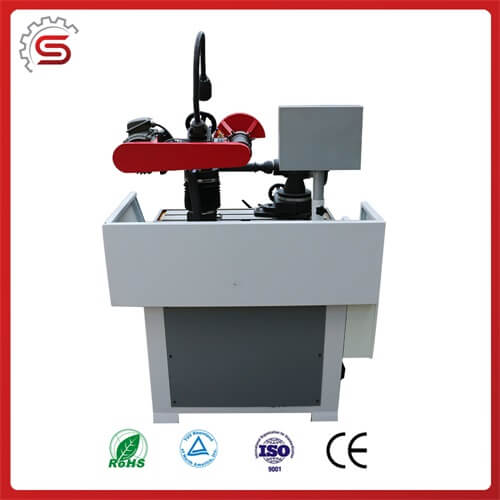

Contemporary Useful High Quality MG2720 Knife Griender Machine
- Applications:This machine mainly used for grinding carbide cuttin
- Hotline: 86-532-67703247
- Fax: 86-532-68067870
- Email:mike@sinosteeler.com
Detail
Contact Us
Applications:
This machine mainly used for grinding carbide cutting circular saw blades of various angles. The use of gold just stone grinding wheel, grinding carbide circular saw blades to the tooth surface, the top teeth, tooth bevel , bevel gear, such as the top. Wide applicability, operation simple and flexible, positioning accurate, saw diameter, angle, pitch adjustment to facilitate the importation of Corresponding data, auto-complete processing, the data part of good regulation, but also grinding Carbide circular saw blades for cutting a variety of angles.

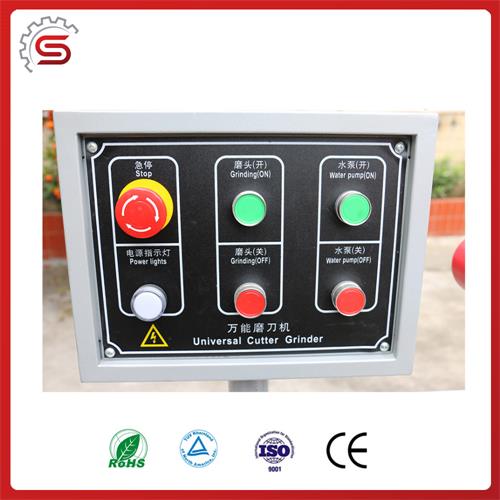

Road, part of the Electrical and control system using PLC, simplifying the traditional button control switch. Through man-machine interface Set operation, easy to learn, convenient, high reliability and automatic power-down data protection, flexible and convenient.
Technical Parameters:
Model | MG2720 |
Cutter rest turning diameter | 400mm |
Grinding wheel specification | 10x32¢x(¢16)x¢150mm |
Cutter rest stroke | 300mm |
Grinding wheel rotate speed | 3500r/min |
Grinding wheel Turning speed | ±45° |
Applicable saw blade size | 105-630mm |

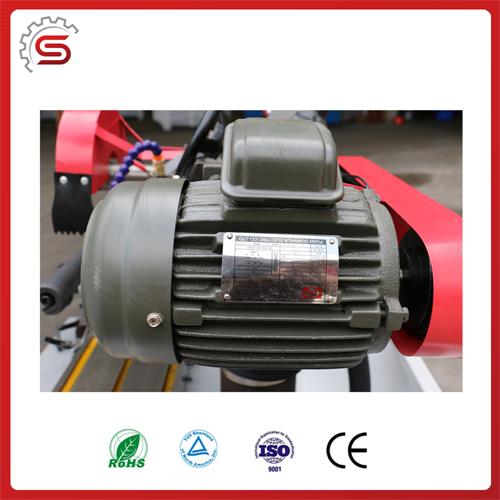

Power of motor | 0.59kw |
Overall size | 800x1000x1600mm |
Weight | 300Kg |
Voltage | 380V |
Product Details:
Packaging & Shipping:
1.The Packaging Details: Stretch film with wooden case or as your request
2.Shipping:We have rich experience in exporting machines to the world and can supply all kinds of different shipping terms!
3.Timely delivery and transportation
Our Services:
1.Good after-sale Services is our strength
1) The machine guarantee is 12 months.
2) 24 hours technical support by email or calling.
3) Friendly English version manual and operation video CD disc.
4)Our engineers can provide services to overseas.
2.Main Market
Which have been exported to a lot of country and Regions . Such as Europe , Russia, Southeast Asia . Middle East . North America and south America , Australia .
3.Sample Service :
If you want to test the performance of machine ,we can sent sample to you with cost offer .
4.Customized Service :
Our factory has been specialized in producing woodworking machines for over 33 years .We have very high research and development capabilities to meet the requirements of custom.
5.We have years of manufacturing woodworking machine,OEM and ODM service available.
