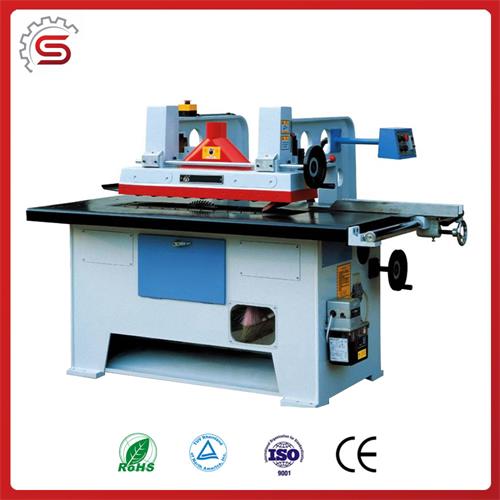

High quality saw machine MJ163B Rip Saw with bottom blade

  • Product DescriptionTechnical parameter:Working thickness10-70mmMin.working length460mmSawblade
  • Hotline: 86-532-67703247
  • Fax: 86-532-68067870
  • Email:mike@sinosteeler.com
  • Detail

  • Contact Us


Product Description


Technical parameter:


Working thickness

10-70mm

Min.working length

460mm

Sawblade  diameter

250-355mm

Min working length

120mm

Spindle motor

7.5kw

Feed motor

1.5kw

Feed speed

10-26m/min

Sawblade bore diameter

Φ50.8mm

Machine dimension

1880*1400*1360mm

Machine Weight

1200kg

Spindle speed

2930r/min

Outstanding Characteristic:



1.Power torque transmission reducer device,equipped with humanized oil pipe for oil inlet,convinent maintenance.



2.The upper housing is made from superior cast iron,equipped with multiple feed rollers,power cut protection device for checking and saw blade replacing,provide people and machine safety.



3.Specially designed side guard can prevent chips or burrknot from spilling out to hurt people efficiently and prevent the operator putting his hand into the machine.



4.Imported Japanese oil pump lubricates each lubrication point regularly and quantificationally.And the machine will automatically stop in case of lackage of oil.

5.The machine frame is made from precisely machined and welded and welded steel,the machine frame has been aged treatment,which ensures rigid and accuracy.



6.Precision chain block,made from special material,specially treated with wear resistance process,has a longer service life.



Detail:




Packaging & Shipping


1.Packing details: Stretch film with wooden case or as your request.


2.Shipping: We have rich experience in exporting machines to the world and can supply all kinds of different

shipping terms.


3.Timely delivery and transportation

Automatic Rip Saw Series MJ 163B High-Speed Automatic Rip Saw Series

Our Services


1.Good after-sale Services is our Superiority

1) The machine guarantee is 12 months.
2) 24 hours technical support by email or calling.
3) Friendly English version manual and operation video CD disc.


4) Oversea engineer after-sale service is available.

2.Main market

Our products has been exported to all over the word, including North America, EU countries, Austrilia, Southeast Asia, Africa and Latin America.

3.Sample Service

If you want to test the performance of machine ,we can sent sample to you with cost offer.

4.Customized Service

Our factory has been specialized in producing woodworking machines for over 33 years .We have very high research and development capabilities to meet the requirements of custom.

5.We have years of manufacturing woodworking machine, OEM and ODM service are available.
