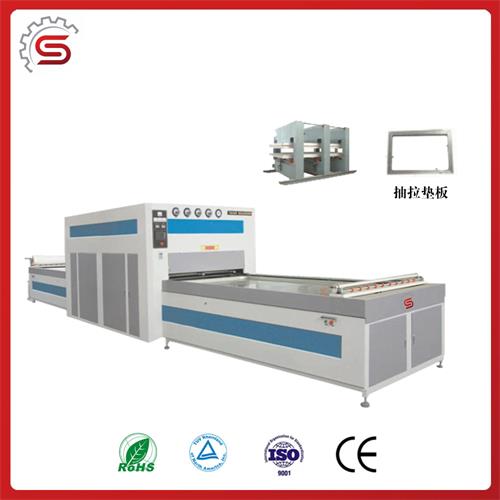

Furniture wood machine STP2680F Membrane press machine to paste PVC ABS
- Product DescriptionTechnical parameter:Outside size9600x2150x 2450mm Table size2600 x
- Hotline: 86-532-67703247
- Fax: 86-532-68067870
- Email:mike@sinosteeler.com
Detail
Contact Us
Product Description
Technical parameter:
Outside size | 9600x2150x 2450mm |
Table size | 2600 x1300x40 mm(INNER SIZE) |
Working size | 2600 x1300x40 mm |
Working Voltage | 380V/50Hz or Basis on client country |
Negative(-) pressure | 0~0.095mpa |
Positive(+) pressure | 0.5~0.6mpa |
Membrane pressure | 0.3~0.5mpa |
Oil pressure | 10mpa (low press:4 top P25kw) |
Working Speed | 2~4 min/1 time |
Maximum processing height | 50mm |
Central supply system | >1 M3 |
Pressure of supply system | >0.5 M3 |
Total power | 52.6kw (half power after running) |
Top heating: | 25.2kw |
half power after running) | (- Under heating:14.4kw (half power after running) |
Conducting oil pump | 0.4kw (NIKUNI vortex pump) |
Hydraulic station | Integrated System |

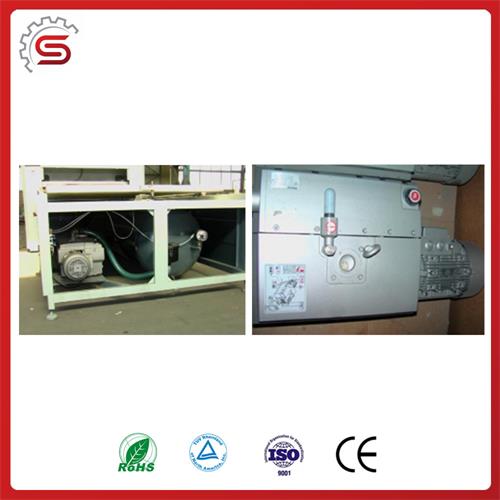

Vacuum pump | Germany Becker |
Control system | PLC (OMRON) |
Temperature control | Temperature controller set temperature |
Heater system | oil heater system |
Total weight | 14000kgs |
Detail:
Packaging & Shipping
1.Packing details: Stretch film with wooden case or as your request.
2.Shipping:We have rich experience in exporting machines to the world and can supply all kinds of different
shipping terms.
3.Timely delivery and transportation
After-Sales Service
1.Good after-sale Services is our Superiority
1) The machine guarantee is 12 months.
2) 24 hours technical support by email or calling.
3) Friendly English version manual and operation video CD disc.
4) Oversea engineer after-sale service is available.
2.Main market
Our products has been exported to all over the word, including North America, EU countries, Austrilia, Southeast Asia, Africa and Latin America.
3.Sample Service
If you want to test the performance of machine ,we can sent sample to you with cost offer.
4.Customized Service
Our factory has been specialized in producing woodworking machines for over 33 years .We have very high research and development capabilities to meet the requirements of custom.
5.We have years of manufacturing woodworking machine, OEM and ODM service are available.
Our Customer Visit
Company Information
Qingdao Steeler woodworking machinery co.,ltd is the professional production of various kinds of sanding machine,polishing machine and other mechanical equipment manufacturers.
The company produced sanding machine which is a combination of Germany,Italy,Taiwan's
good mechanical properties,structure and the advanced polishing machine not only draw lessons from the foreign advanced technology,and highlights the Steeler people development innovation,enterprising spirit,continuous research and development to adapt to the market,make our polishing machine series equipment industry's leading edge products.
We have already approved the ISO9000 International quality system certification and the main products through the national certification,access to the national key new products,high-tech products such as the honorary title,by the Chinese enterprise brand quality committee awarded
the "National quality credit AAA grade credit enterprise"brand,the company products are sold well all over theworld.
A strong R&D team,strong processing power,the reliable quality assurance,strict testing means
make the company to win the trust of users.
Rich experience,sophisticated design,advanced manufacturing technology,as well as relevant to the users'communication,make the company continuously introduced to adapt to the market,meet theusers of the new product.Quality,efficiency,service,integrity,modest is the goal of the Steeler People!
FAQ
1) Q: What's the MOQ?
A: MOQ is one set.
2) Q: Provide custom machine Yes or No?
A: Yes. We can provide custom machine for clients.
3) Q: What's the payment terms?
A: T/T 30% in advance and balance before shipment or by negotiation.
4) Q: Are you factory or trade company?
A: We are factory and trade company.
5) Q: How long is the warranty period?
A: One year warranty period except the quick-wear parts.
6) Q: Do you have professional engineers?
A: Yes. We have professional engineers and designers. We can provide OEM products.
