High quality wood machine WP9066 Vacuum Press For Curved Panels for the Curved panel's vacuum press

  • Product DescriptionTechnical parameter: ItemWP9066Workpiece diamension970x640x18mm(6layer)
  • Hotline: 86-532-67703247
  • Fax: 86-532-68067870
  • Email:mike@sinosteeler.com
  • Detail

  • Contact Us

Product Description


Technical parameter:



Item

WP9066

Workpiece diamension

970x640x18mm(6layer)

Workpiece inner radius

400mm

Working air pressure

6kg/cm²

Cycle time,minute

APX25min(According to the thickness of PVC and Veneer

Heating temperature

120ºC

Max vacuum pressure

-0.92kpa

Vacuum pump capacity

40m³/h

Noice level

60db

Heating element power

7.2kw

Vacuum pump power

1.5kw

Total power

8.7kw

Overall dimension

1500x1030x1300mm

Weight

390kg


This machine is mainly used for the Curved panel's vacuum press,such as the MDF board,polyboard,wood sheet,woodplastic sheet Etc

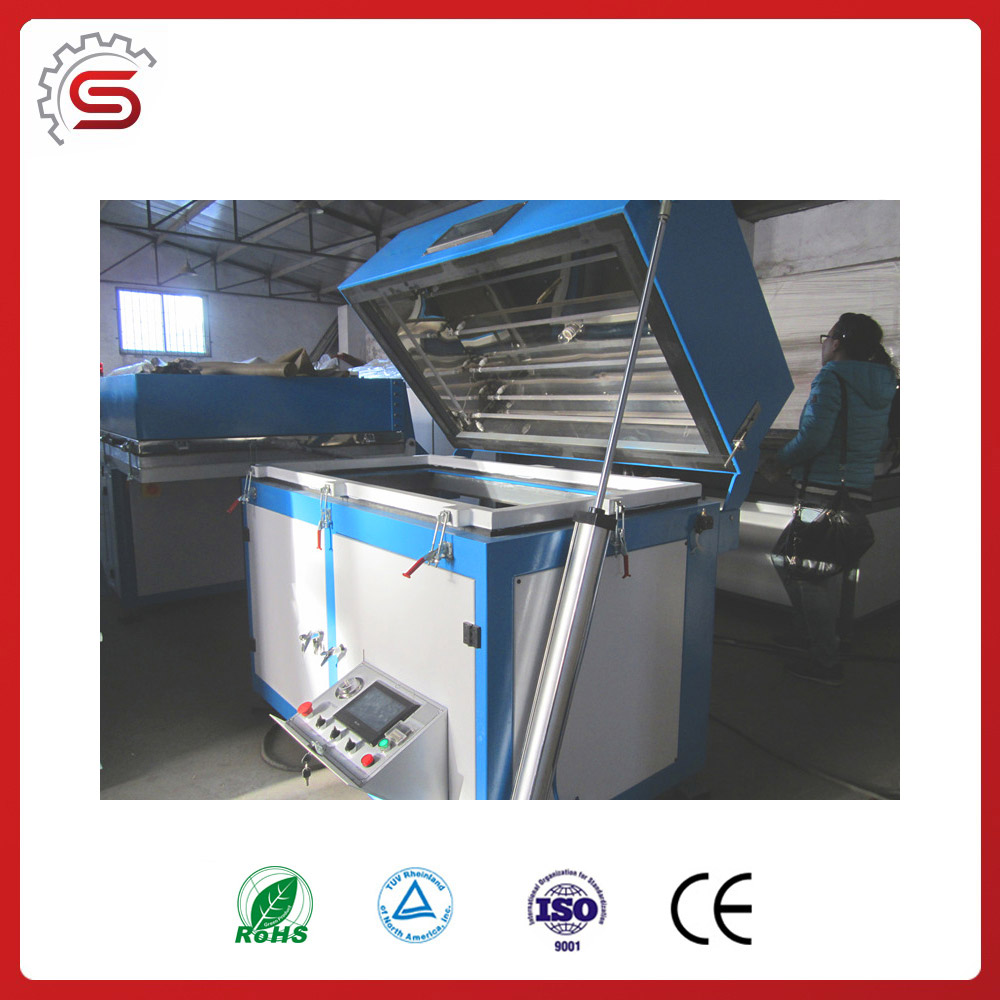

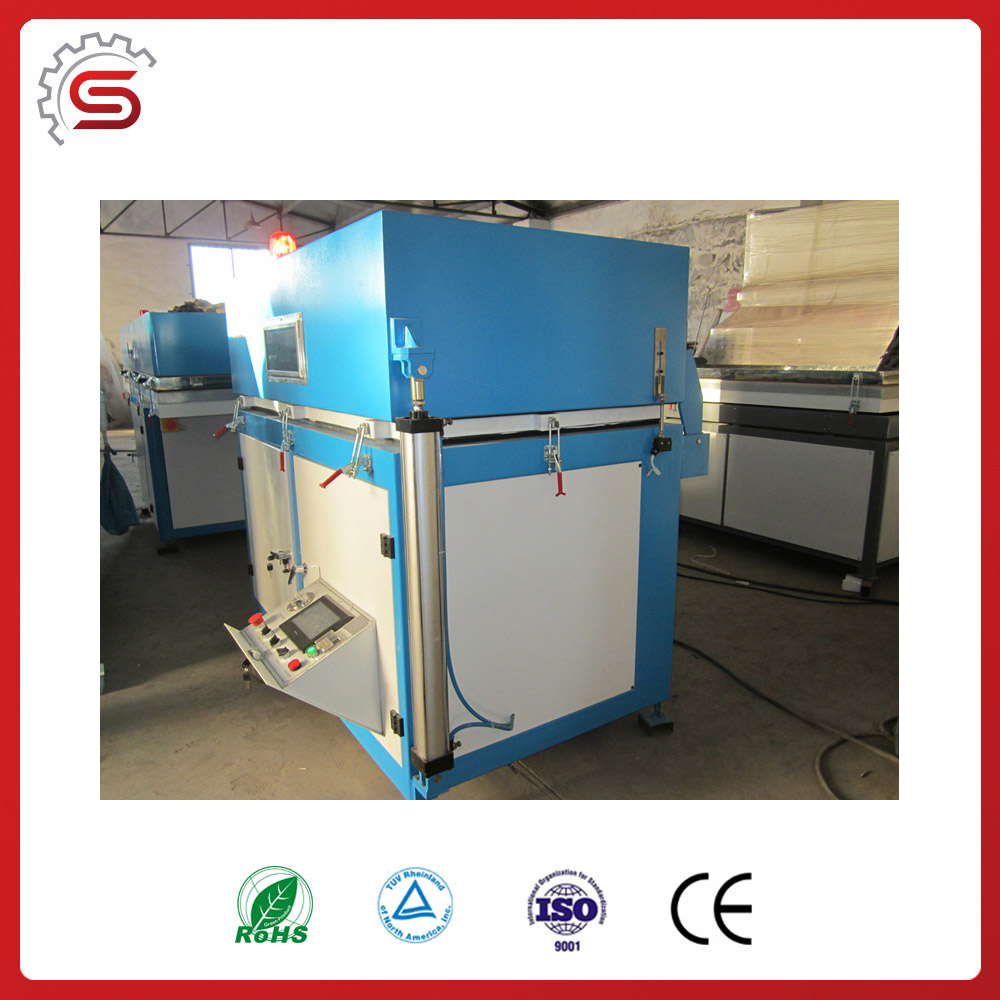

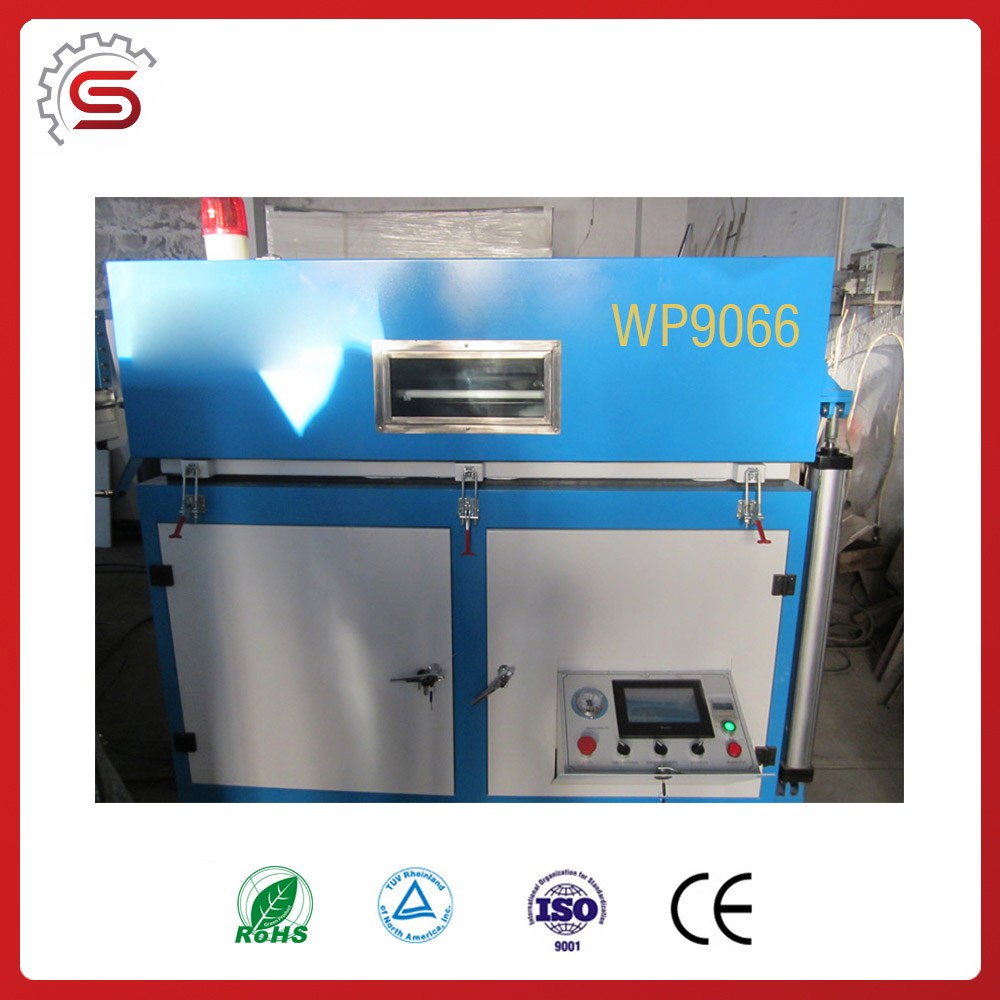

Detail picture:





Packaging & Shipping


1.Packing details: Stretch film with wooden case or as your request.


2.Shipping:We have rich experience in exporting machines to the world and can supply all kinds of different

shipping terms.


3.Timely delivery and transportation


After-Sales Service


1.Good after-sale Services is our Superiority

1) The machine guarantee is 12 months.
2) 24 hours technical support by email or calling.
3) Friendly English version manual and operation video CD disc.


4) Oversea engineer after-sale service is available.

2.Main market

Our products has been exported to all over the word, including North America, EU countries, Austrilia, Southeast Asia, Africa and Latin America.

3.Sample Service

If you want to test the performance of machine ,we can sent sample to you with cost offer.

4.Customized Service

Our factory has been specialized in producing woodworking machines for over 33 years .We have very high research and development capabilities to meet the requirements of custom.

5.We have years of manufacturing woodworking machine, OEM and ODM service are available.


Our Customer Visit


Company Information


Qingdao Steeler woodworking machinery co.,ltd is the professional production of various kinds of

sanding machine,polishing machine and other mechanical equipment manufacturers.


The company produced sanding machine which is a combination of Germany,Italy,Taiwan's good mechanical properties,

structure and the advanced polishing machine not only draw lessons from the foreign advanced technology,and highlights the Steeler people development innovation,enterprising spirit,continuous research and development to adapt to the market,make our polishing machine series equipment industry's leading edge products.


We have already approved the ISO9000 International quality system certification and the main products through the national certification,access to the national key new products,high-tech products such as the honorary title,by the Chinese

enterprise brand quality committee awarded the "National quality credit AAA grade credit enterprise"brand,the company products are sold well all over theworld.


A strong R&D team,strong processing power,the reliable quality assurance,strict testing means make the company to win the trust of users. Rich experience,sophisticated design,advanced manufacturing technology,as well as relevant to

the users'communication,make the company continuously introduced to adapt to the market,meet theusers of the new product.Quality,efficiency,service,integrity,modest is the goal of the Steeler People!


FAQ


1) Q: What's the MOQ?
A: MOQ is one set.
2) Q: Provide custom machine Yes or No?
A: Yes. We can provide custom machine for clients.
3) Q: What's the payment terms?
A: T/T 30% in advance and balance before shipment or by negotiation.
4) Q: Are you factory or trade company?
A: We are factory and trade company.
5) Q: How long is the warranty period?
A: One year warranty period except the quick-wear parts.
6) Q: Do you have professional engineers?
A: Yes. We have professional engineers and designers. We can provide OEM products.
