Furniture machine STR1325P High-speed engraving machine for sale
- Furniture machine STR1325P High-speed engraving machine for saleProduct Description Model
- Hotline: 86-532-67703247
- Fax: 86-532-68067870
- Email:mike@sinosteeler.com
Detail
Contact Us

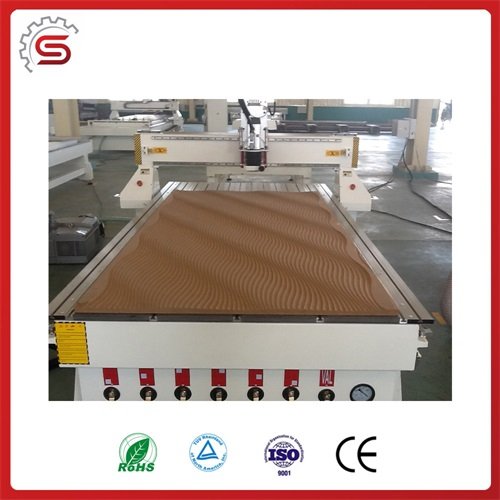

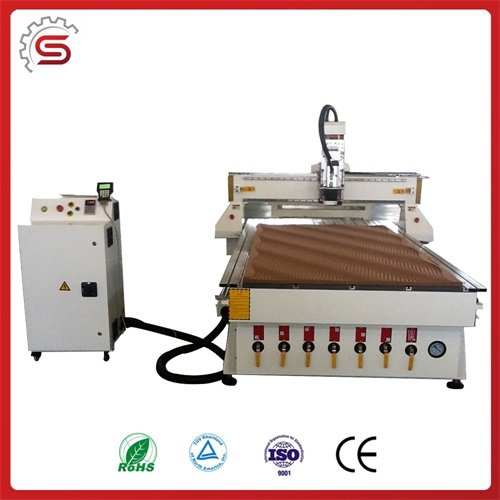

Furniture machine STR1325P High-speed engraving machine for sale
Product Description
Model Parameter | STR1325P High-speed engraving machine |
Working size | 1300*2500*200mm |
Table structure | Vacuum and absorption worktable |
Max. air speed | 30m/min |
Max. processing speed | 15m/min |
Repeatability | ±0.05mm |
System resolution | ±0.0025mm |
Spindle power | HSD air-cooling spindle 4.5KW |
Spindle speed | 6000-24000rpm |
Drive system | 2D811 Stepper motor |
Control system | Original A11 DSP control system |
X Y Z Guide Rail | TAIWAN HIWIN Square Rail |
frequency converter | 5.5KW Delta |
Software support | TYPE3,UCANCAM,ARTCAM,MASTERCAM,UG,Auto CAD |
Absorption equipment | Air-cooled pump 5.5KW |
Dust clean equipment | Single-bag dust collector 2.2KW |
Weight | 1500kg |
Working voltage | AC380V/50HZ |
Optional Parts:
1.1000usd Air pump
2.500usd Water pump
3.100usd Dust collector
Warehouse Factory
customer with us
Our Services
1.Good after-sale Services is our strength
1) The machine guarantee is 12 months.
2) 24 hours technical support by email or calling.
3) Friendly English version manual and operation video CD disc.
4)Our engineers can provide services to overseas.
2.Main Market
Which have been exported to a lot of country and Regions . Such as Europe , Russia, Southeast Asia . Middle East . North America
and south America , Australia .
3.Sample Service :
If you want to test the performance of machine ,we can sent sample to you with cost offer .
4.Customized Service :
Our factory has been specialized in producing woodworking machines for over 33 years .We have very high research and development capabilities to meet the requirements of custom.
5.We have years of manufacturing woodworking machine,OEM and ODM service available.
FAQ
1) Q: What's the MOQ?
A: MOQ is one set.
2) Q: Provide custom machine Yes or No?
A: Yes. We can provide custom machine for clients.
3) Q: What's the payment terms?
A: T/T 30% in advance and balance before shipment or by negotiation.
4) Q: Are you factory or trade company?
A: We are factory and trade company. STEELER is our brand.
5) Q: How long is the warranty period?
A: One year warranty period except the quick-wear parts.
6) Q: Do you have professional engineers?
A: Yes. We have professional engineers and designers. We can provide OEM products.
Contact Person: Megan Email: sales009@sinosteeelr.com
Mob: 0086-15621188070 Whatsapp: 0086-15621188070
