Furniture machine high-speed CNC router STR1530 wood carving machine

Furniture machine  high-speed CNC router STR1530 wood carving machine

Product Description

1,The overall bed lathe is made of cast steel under welding processing, stand-up and no deformation.Strong steel, big forceful, smooth rotation, making a long run at high speed no distortion, no jitter.

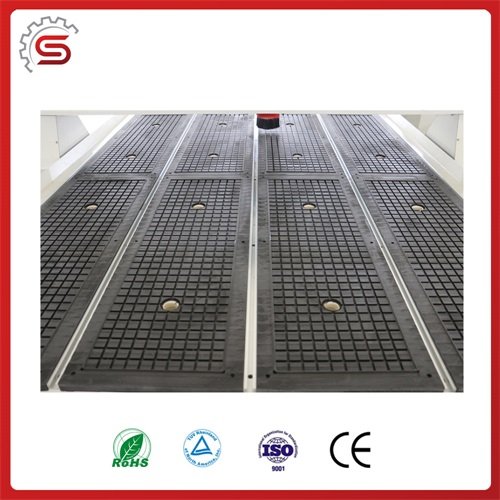

2,Gantry movement,stable work table,process the material in the worktable at will.The working table is made of elec-wood material with the function of vacuum suck, the elec-wood is anti-high temperature, anti-corrosive, and it can suck non-metal materials with different square more effectively.While on the vacuum table have some manual setting plate slot for easy to put small area workpiece or the processing material can not be adsorbed or long-time processing artifacts, save electricity, multi-use machine, makes the human design. Note: The optional aluminum extrusion table (with T-slot)

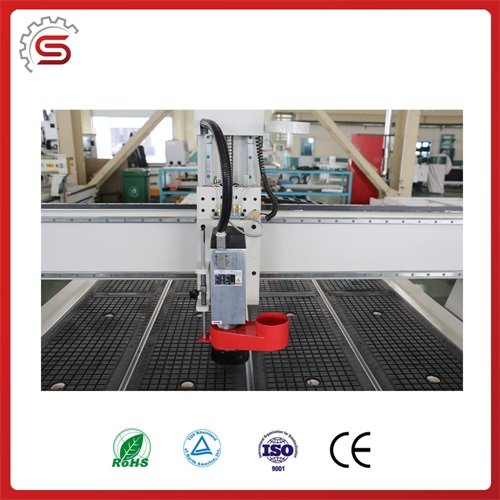

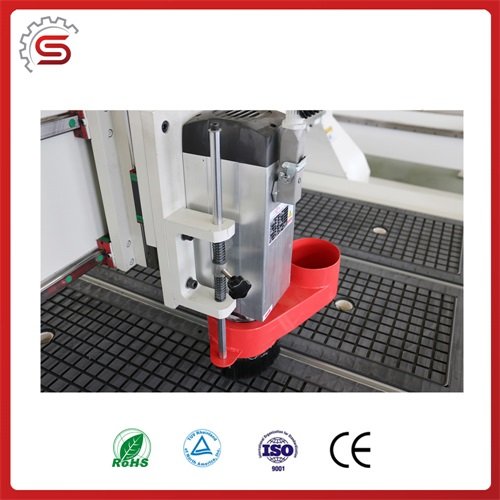

3, The-high speed engraving machine is one kind professional equipment withthe best cost-effective,for medium or large furniture doors enterprises to use, for batch-oriented, all-weather work, the standard air-cooled power 4.5KW spindle, original high-precision bearings greatly extend the service life.

4, High-speed type wood engraving machine adopts to Taiwan AMT high precision, zero clearance increased square sliding linear guide, rack with high-precision and special technology processing, smooth operation, high accuracy; and the Y axis of the bilateral-driven, fast , high efficiency, large loading capacity, can be heavy cutting.
5, High-speed type wood engraving machine uses high-power dust cleaning devices and improved concentration dust lubrication system, good work environment, with longer life.

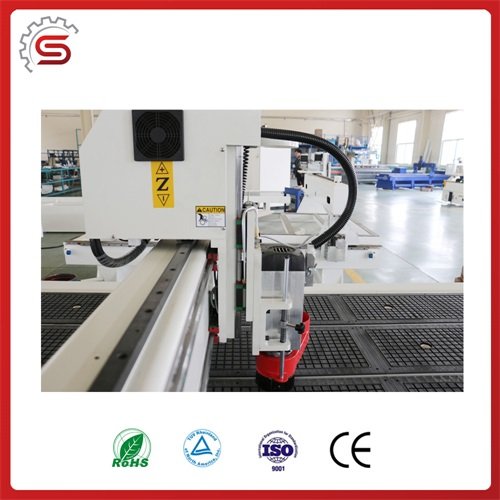

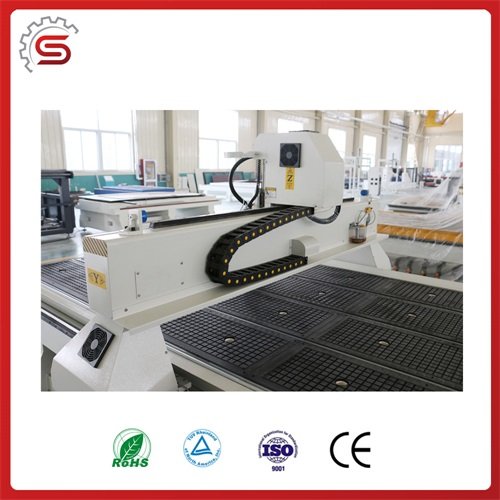

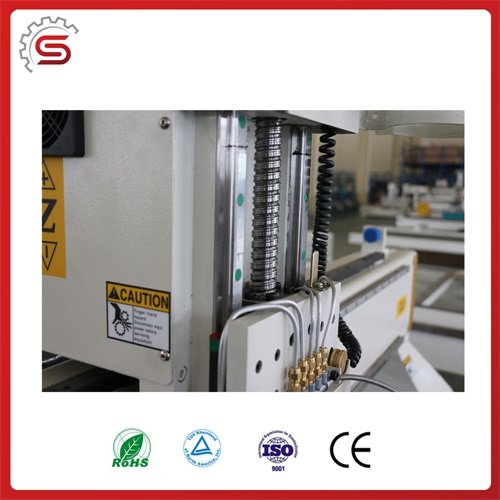

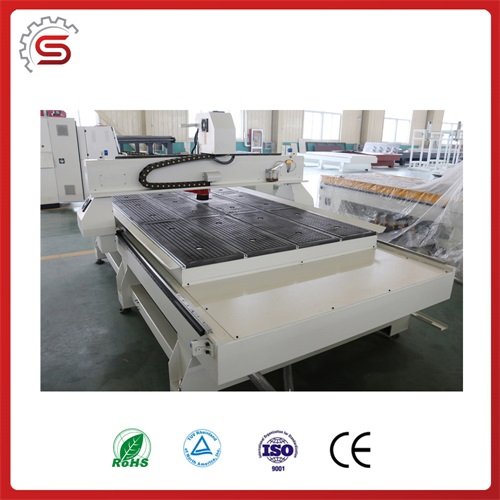

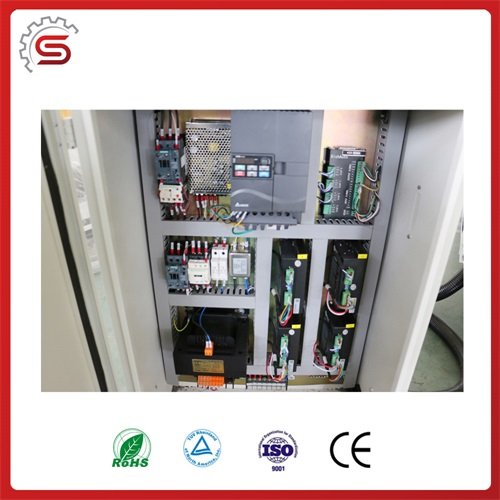

Detailed Images

Application:

1, Wooden doors and furniture industries: wood and composite doors, cabinet doors, a large area of flat plate engraving, wood engraving and milling carved, carved furniture, antique mahogany furniture, sculpture, wood carving art of murals and other industries;
2, Wooden handicraft processing: watch box, craft photo frames, calligraphy plaque, counter tops appliances, sporting goods equipment, engraving and milling a thin aluminum sculpture;
3, Electronics industry: circuit boards, insulation materials, LED display, home appliances (TV, washing machine, refrigerator) or model shell carving engraving and milling;
4, Music production industry: musical instruments carved three-dimensional surface, shape cutting, such as large or small violin and piano panel head, guitar, ecru and other three-dimensional surface engraving and milling;
5, EVA processing industry: EVA materials, packaging tools equipment, medical equipment, electronic products, glassware, etc. lined with carved engraving and milling.
6, Other industries: building model, wood model, aviation wood model, propeller, auto foam mold.

Packaging & Shipping

1.Packing Details:Stretch film with wooden case or as your request .

2.Shipping: We have rich experience in exporting machines to the world and can supply all kinds of different shipping terms!

3.Timely delivery and transportation!

Warehouse Factory

Our Services

1.Good after-sale Services is our strength

1) The machine guarantee is 12 months.

2) 24 hours technical support by email or calling.

3) Friendly English version manual and operation video CD disc.

4)Our engineers can provide services to overseas.

 2.Main Market

Which have been exported to a lot of country and Regions . Such as Europe , Russia, Southeast Asia . Middle East . North America

and south America , Australia .

3.Sample Service :

If you want to test the performance of machine ,we can sent sample to you with cost offer .

4.Customized Service :

Our factory has been specialized in producing woodworking machines for over 33 years .We have very high research and development capabilities to meet the requirements of custom.

5.We have years of manufacturing woodworking machine,OEM and ODM service available.

FAQ

1) Q: What's the MOQ?

      A: MOQ is one set.

2) Q: Provide custom machine Yes or No?

     A: Yes. We can provide custom machine for clients.

3)  Q: What's the payment terms?

     A: T/T 30% in advance and balance before shipment or by negotiation.

4)  Q: Are you factory or trade company?

     A: We are factory and trade company. STEELER is our brand.

5) Q: How long is the warranty period?

     A: One year warranty period except the quick-wear parts.

6) Q: Do you have professional engineers?

     A: Yes. We have professional engineers and designers. We can provide OEM products.

customer with us

Software features:

1,This machine can engrave any design,support scanners,direct support UG,Art CAM,Type3,Corel Draw,Proe,Wen tai,carving and many other G-code format generated by CAD/CAM

2,Embedded DSP numerical control system or the PCI controller card control system can achieve breakpoint carving off memory, can be completely off-line operation.
