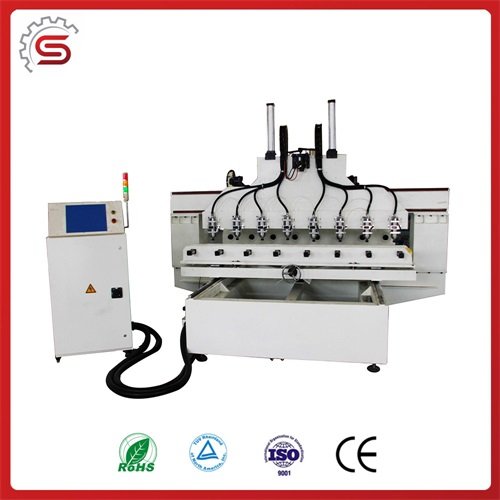

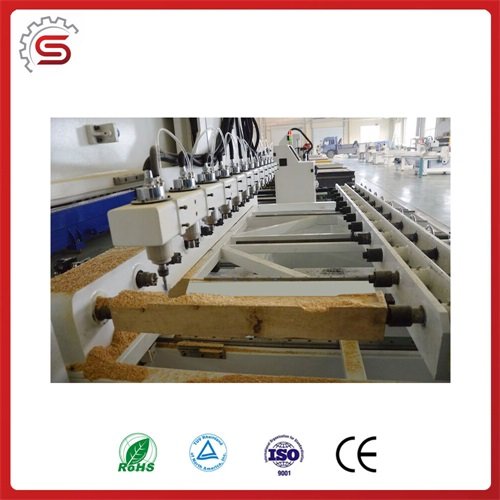

Wood stair engraving machine STR1325-4S 4 Axis CNC Router
Product Description
Model | KI1325-4S 4 Axis CNC Router(4 Spindles) |
X,Y ,Z Processing Size | 300mmΧ1200mmΧ4(Length *Diameter) |
X,Z Processing resolution | ±0.01/300mm |
X,Z Reposition Resolution | ±0.01mm |
X,Y,Z Control Resolution Ratio | 0.0001mm |
Rotary Axis Reposition Resolution | 4 second |
Engraving Cylinder Length | 1200mm |
Max. Processing Weight of each | 60KG |
Max. Engraving Speed | 20000mm/min |
Engraving Cylinder diameter | <=300mm(4 Pieces work) |
Structure | Heavy Duty Steel Tube Structure, Steel Gantry, |
Spindle Power | 4 Spindles(2.2KW Water Cooling Spindle) |
Spindle Rotating Speed | 6000- 24000rpm |
Motors | Servo Motors and Drivers |
Running Speed | 1m/min---35m/min |
Voltage | 380V,50HZ |
Bits | ER32,3.175mm---8mm; |
Control System | 4 Axis Original Ncstudio System( Original Software) |
Software | Type3/Artcam/Ucancam/Caxa/Mastercam/UG/wentai/JD |
Format | G code |
Transmitting System | Taiwan AMT high-precision Zero clearance square compound Sliding Linear Guide rail Pair ,Taiwan PMI Ball screw |
Weight | 2000KG |
Package Size | 3000mm*2100mm*1800mm(X *Y*Z) |
Surroundings | Temperature: 0-45℃; humidity:30%-75% |
Warehouse Factory
Our Services
1.Good after-sale Services is our strength
1) The machine guarantee is 12 months.
2) 24 hours technical support by email or calling.
3) Friendly English version manual and operation video CD disc.
4)Our engineers can provide services to overseas.
2.Main Market
Which have been exported to a lot of country and Regions . Such as Europe , Russia, Southeast Asia . Middle East . North America
and south America , Australia .
3.Sample Service :
If you want to test the performance of machine ,we can sent sample to you with cost offer .
4.Customized Service :
Our factory has been specialized in producing woodworking machines for over 33 years .We have very high research and development capabilities to meet the requirements of custom.
5.We have years of manufacturing woodworking machine,OEM and ODM service available.
FAQ
1) Q: What's the MOQ?
A: MOQ is one set.
2) Q: Provide custom machine Yes or No?
A: Yes. We can provide custom machine for clients.
3) Q: What's the payment terms?
A: T/T 30% in advance and balance before shipment or by negotiation.
4) Q: Are you factory or trade company?
A: We are factory and trade company. STEELER is our brand.
5) Q: How long is the warranty period?
A: One year warranty period except the quick-wear parts.
6) Q: Do you have professional engineers?
A: Yes. We have professional engineers and designers. We can provide OEM products.
