cnc router engraver drilling and milling machine STR1212A-ATC 5AXIS for aluminum
- cnc router engraver drilling and milling machine STR1212A-ATC 5AXIS for aluminumProduct Description&
- Hotline: 86-532-67703247
- Fax: 86-532-68067870
- Email:mike@sinosteeler.com
Detail
Contact Us

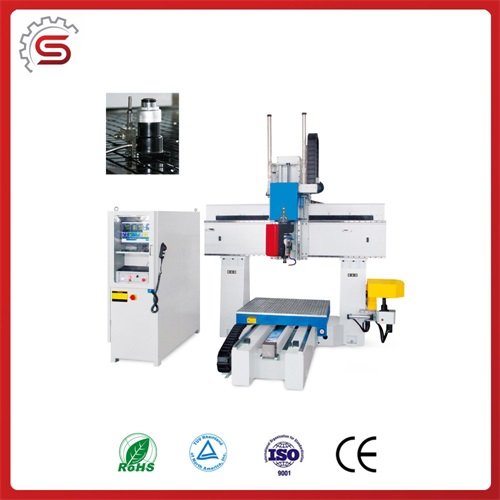

cnc router engraver drilling and milling machine STR1212A-ATC 5AXIS for aluminum
Product Description
Description | STR1212A-ATC |
X /Y/ Z Axis Working Area | 1200*1200*700mm |
C Axis Rotary Angle | ±225° |
A Axis Rotary Angle | ±100 |
X Axis Maximum Speed | 26m/min |
Y Axis Maximum Speed | 60m/min |
Z Axis Maximum Speed | 15m/min |
C/A Axis Maximum Speed | 70°/min |
Max.Spindle speed | 24000rmp |
Orientation Precision | ±0.05mm |
System Resolution | ±0.001mm |
Vacuum Pump | 230m³/h |
Operating system | 5 Axis Syntec Control System |
Tool Storage | 8 Tools Storage |
Compatibility Software | UG, Alpha Cam,Becam,Type3, |
Spindle Power | 7.5KW(ITALY BRAND) |
Voltage | 3PHASE, 380V, 50HZ/60HZ |
Net weight | 5000KG |
Gross weight | 5500KG |
Packaging & Shipping
1.Packing Details:Stretch film with wooden case or as your request .
2.Shipping: We have rich experience in exporting machines to the world and can supply all kinds of different shipping terms!
3.Timely delivery and transportation!
Warehouse Factory
customer with us
Our Services
1.Good after-sale Services is our strength
1) The machine guarantee is 12 months.
2) 24 hours technical support by email or calling.
3) Friendly English version manual and operation video CD disc.
4)Our engineers can provide services to overseas.
2.Main Market
Which have been exported to a lot of country and Regions . Such as Europe , Russia, Southeast Asia . Middle East . North America
and south America , Australia .
3.Sample Service :
If you want to test the performance of machine ,we can sent sample to you with cost offer .
4.Customized Service :
Our factory has been specialized in producing woodworking machines for over 33 years .We have very high research and development capabilities to meet the requirements of custom.
5.We have years of manufacturing woodworking machine,OEM and ODM service available.
FAQ
1) Q: What's the MOQ?
A: MOQ is one set.
2) Q: Provide custom machine Yes or No?
A: Yes. We can provide custom machine for clients.
3) Q: What's the payment terms?
A: T/T 30% in advance and balance before shipment or by negotiation.
4) Q: Are you factory or trade company?
A: We are factory and trade company. STEELER is our brand.
5) Q: How long is the warranty period?
A: One year warranty period except the quick-wear parts.
6) Q: Do you have professional engineers?
A: Yes. We have professional engineers and designers. We can provide OEM products.
Contact Person: Megan Email: sales009@sinosteeelr.com
Mob: 0086-15621188070 Whatsapp: 0086-15621188070
