Computer wood cutting machine MJK1337FZ automatic sawing machine for wood
- Computer wood cutting machine MJK1337FZ automatic sawing machine for woodProduct Description Mo
- Hotline: 86-532-67703247
- Fax: 86-532-68067870
- Email:mike@sinosteeler.com
Detail
Contact Us

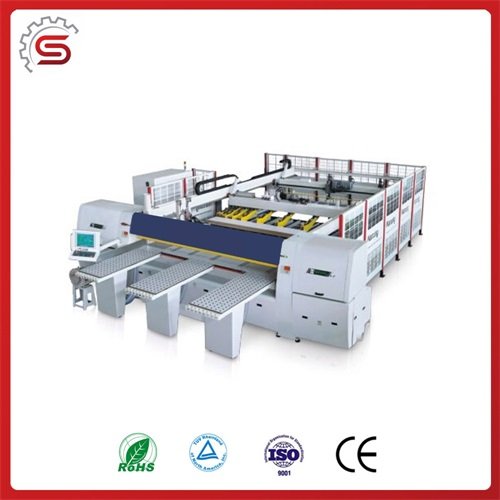

Computer wood cutting machine MJK1337FZ automatic sawing machine for wood
Product Description
Model | MJK1337FZ |
Max cutting length | 3680mm |
Max.cutting thickness | 120mm |
Main saw blade diameter | Φ460mm |
Main saw blade inner diameter | Φ60mm |
Main saw rotating speed | 3910rpm |
Scoring saw blade diameter | Φ180mm |
Scoring saw blade inner diameter | Φ45mm |
Scoring saw rotating speed | 4150rpm |
Saw carriage forward speed adjustable | 5-80m/min |
Saw carriage backward speed | 100m/min |
Main saw motor | 18kw |
Saw carriage driving motor | 2.2kw |
Automatic feeding motor | 1.5kw(AC Servo motor) |
Automatic feeding motor | 2kw(AC Servo motor) |
Pusher motor | 2kw(AC Servo motor) |
Feeding motor | 3kw |
Roller motor | 0.75kw |
Powerful ventilator motor | 2.2kw |
Total power | 35kw |
Automatic feeding speed | 80m/min |
Rear feeding speed | 36m/min |
Air pressure | 5-7kg/cm² |
Working table height from ground level | 980mm |
Stacking height | 1200mm |
Net weight | 8000kg |
Overall dimension | 6900x9700x2020mm |
Packaging & Shipping
1.Packing Details:Stretch film with wooden case or as your request .
2.Shipping: We have rich experience in exporting machines to the world and can supply all kinds of different shipping terms!
3.Timely delivery and transportation!
Warehouse Factory
Our Services
1.Good after-sale Services is our strength
1) The machine guarantee is 12 months.
2) 24 hours technical support by email or calling.
3) Friendly English version manual and operation video CD disc.
4)Our engineers can provide services to overseas.
2.Main Market
Which have been exported to a lot of country and Regions . Such as Europe , Russia, Southeast Asia . Middle East . North America
and south America , Australia .
3.Sample Service :
If you want to test the performance of machine ,we can sent sample to you with cost offer .
4.Customized Service :
Our factory has been specialized in producing woodworking machines for over 33 years .We have very high research and development capabilities to meet the requirements of custom.
5.We have years of manufacturing woodworking machine,OEM and ODM service available.
FAQ
1) Q: What's the MOQ?
A: MOQ is one set.
2) Q: Provide custom machine Yes or No?
A: Yes. We can provide custom machine for clients.
3) Q: What's the payment terms?
A: T/T 30% in advance and balance before shipment or by negotiation.
4) Q: Are you factory or trade company?
A: We are factory and trade company. STEELER is our brand.
5) Q: How long is the warranty period?
A: One year warranty period except the quick-wear parts.
6) Q: Do you have professional engineers?
A: Yes. We have professional engineers and designers. We can provide OEM products.
