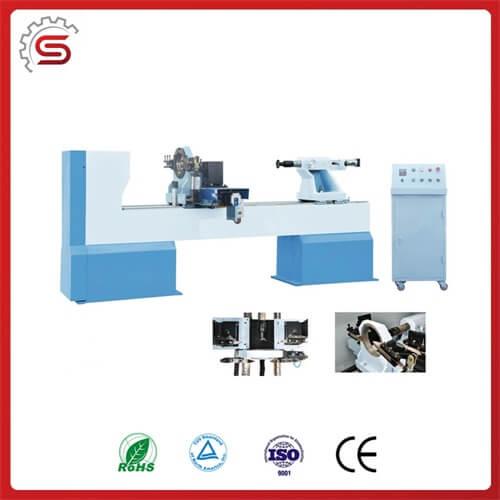

                  Woodworking machinery CL1503S CNC Wood Lathe










Technical parameters:

Model

CL1503S

Max processing size

1500x300mm

Spindle Power

4kw

Quantity of spindle

1

Quantity of tools

2

Max feed speed

35mm/s

Main spindle speed

3500rpm

Accuracy

0.001mm

Support command

G code

Voltage

380V 50HZ

Control system

CNC,PC+12"LCD or DSP

Software

Coreldraw ,Artcam,Type3,Ucancam,Gaxa,UG,Mastercam,AutoCAD

Net weight

1500kg

Oversize dimensions

2750x1200x1300mm

Main Features:

1) Driving system:Adopt frequency conversion speed regulation system,
could adjust the turning speed at any time to solve the problem of materials’ vibration.



2)The machine has 2 cutters (The Rough turning cutter and finish turning cutter work synchronously with layered process) and
so that improve the efficiency and workpiece surface quality.



3)Spindle: we could configure single spindle with two pcs cutter or one pc cutter, single spindle could configure chuck, two cutters could do rough turning and finish turning at the same time for high efficiency and surface quality.

 (Double spindles has stop to produce again.In fact,the model is not good to the turning the wood products, it is very slow when turning the big sizes column, and there have many defects at design to the Double Spindle lathe, Such as the Sanding, Centering, Programming,Upper Spindle Structural Stability etc)



4)Linear square rails,ballscrews,and some electronic components are imported, high  precision and durable.

5) Performance part: high accuracy stepper motor, after program calculating, guarantee the exact processing size.

6) Feeding part:Taiwan CSK high quality straight line sliding rails and TBI precise ball screw, control the linear error effectively.

7) High Class frequency converter with high stability

8) It is heavyduty and heavy weight with good stability,avoid shaking when the spindle rotates fast or the big sizes workpiece process,
 and the main spindle speed can be adjusted through the frequency converter.

9)Easy operation, we can draw by Coredraw,Artcam,autoCAD and other softwares,

and the control directly by the CNC cabinet computer (Industrial PC configuration) ortransfer the files to machine by a USB (DSP handle configuration).

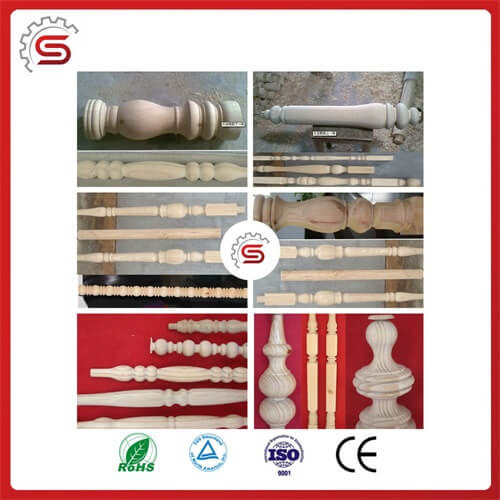

Application:

Various cylindrical workpiece, bowl sharp, tubular sharp and vehicle wood crafts, such as various staircase column,
Roman column, general column, tables or chairs legs, washstand, wooden vase, wooden table, baseball bat,
car wooden furniture, children' s bed column, etc.
