LSP400/600 Automatic Profile Spraying Machine

  •   LSP400/600 Automatic Profile Spraying Machine  PSM Series, Automatic Profile S
  • Hotline: 86-532-67703247
  • Fax: 86-532-68067870
  • Email:mike@sinosteeler.com
  • Detail

  • Contact Us

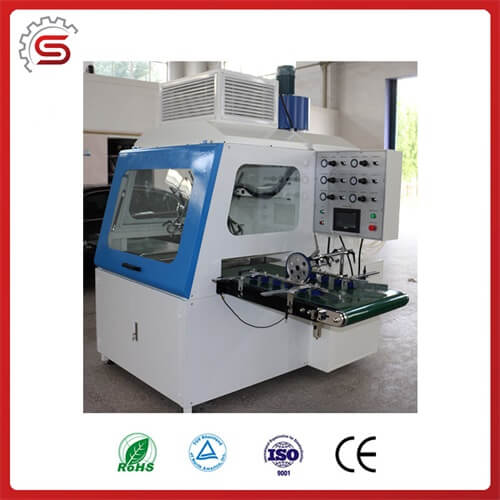

  LSP400/600 Automatic Profile Spraying Machine





PSM Series, Automatic Profile Spraying Machine is a special machine for spraying slightness work piece. This machine has high automatization; symmetrical spraying surface; accurate control; high producing efficiency and high cost performance. It is suitable for UV, PU, PE, NV, etc. It has UV lacquer reclaiming equipment to reduce waste. It can be used alone and also can be equipped with line drier to make the work piece dried as soon as spraying finished.

Technical Parameter:

Model

LSP400

LSP600

Processing width

10-400mm

10-600mm

Processing thickness

10-100mm

10-100mm

Min.length

700mm

700mm

Feeding speed

0-50m/min

0-50m/min

Working Spraying gun

3Pcs

3Pcs

Working Pressure

0.5-0.8Mpa

0.5-0.8Mpa

Total power

2.25kw

2.25kw

Figure Dimensions

3500x1700x2000mm

3500x2000x2000mm

Weight

1600kg

1800kg

1.Packing Details:Stretch film with wooden case or as your request .

2.Shipping: We have rich experience in exporting machines to the world and can supply all kinds of different shipping terms!

3.Timely delivery and transportation!


Warehouse Factory


Our Services

1.Good after-sale Services is our strength

1) The machine guarantee is 12 months.

2) 24 hours technical support by email or calling.

3) Friendly English version manual and operation video CD disc.

4)Our engineers can provide services to overseas.

 2.Main Market

Which have been exported to a lot of country and Regions . Such as Europe , Russia, Southeast Asia . Middle East . North America

and south America , Australia .



3.Sample Service :

If you want to test the performance of machine ,we can sent sample to you with cost offer .



4.Customized Service :

Our factory has been specialized in producing woodworking machines for over 33 years .We have very high research and development capabilities to meet the requirements of custom.



5.We have years of manufacturing woodworking machine,OEM and ODM service available.

FAQ

1) Q: What's the MOQ?

      A: MOQ is one set.

2) Q: Provide custom machine Yes or No?

     A: Yes. We can provide custom machine for clients.

3)  Q: What's the payment terms?

     A: T/T 30% in advance and balance before shipment or by negotiation.

4)  Q: Are you factory or trade company?

     A: We are factory and trade company. STEELER is our brand.

5) Q: How long is the warranty period?

     A: One year warranty period except the quick-wear parts.

6) Q: Do you have professional engineers?

     A: Yes. We have professional engineers and designers. We can provide OEM products.
