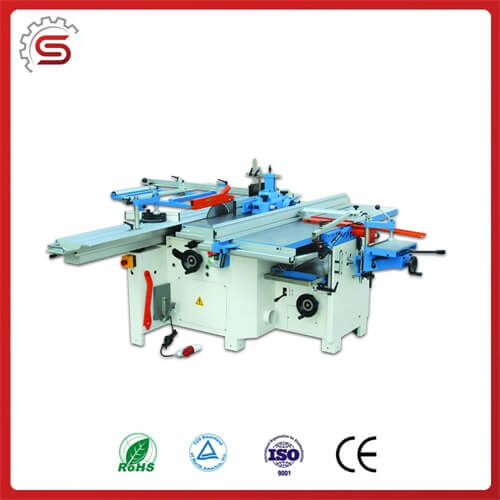

Woodworking machine ML410H Combination woodworking machine

Cutterblock(with 3 blades)

Φ72mm

3 cutters

410x30x3mm

Max.Planing depth

400mm

Max removal

4mm

Fence tilting

90˚ ,45˚

Motor power

3KW220V(380V)50HZ

                                  Thickness planing

Max planing width

400mm

Work height

3-230mm

Driving speed

7m/min

Max.removal

4mm

Motor power

3KW220V(380V)50HZ

                                           Saw

Saw blade dia

Φ305mm

Hole dia

Φ30mm

Shaft stop time

<=9sec

Max.cross cut width

820mm

Motor power

2.2KW220V(380V)50HZ

Scorer assembly

Scorer blade dia

Φ80mm

Hole dia

Φ20mm

Rotation speed

8000rpm

                                        Moulder

Router spindle Dia

Φ30mm

Max.shaft protrusion from table

155mm

Spindle rotation speed

1400,3500,6000,8000r/min

Motor power

2.2KW220V(380V)50HZ

                                         Drilling

Drilling Dia

Φ3--16mm

Max.drilling depth

80mm
