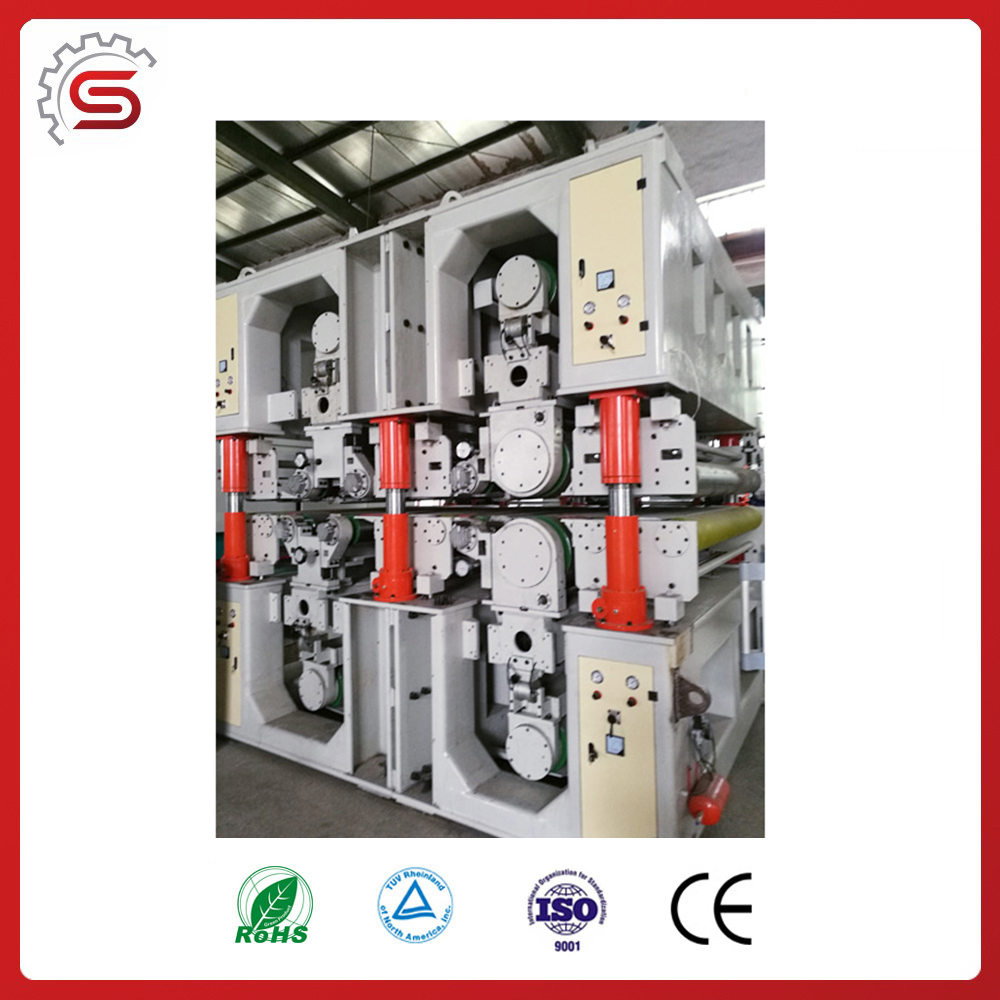

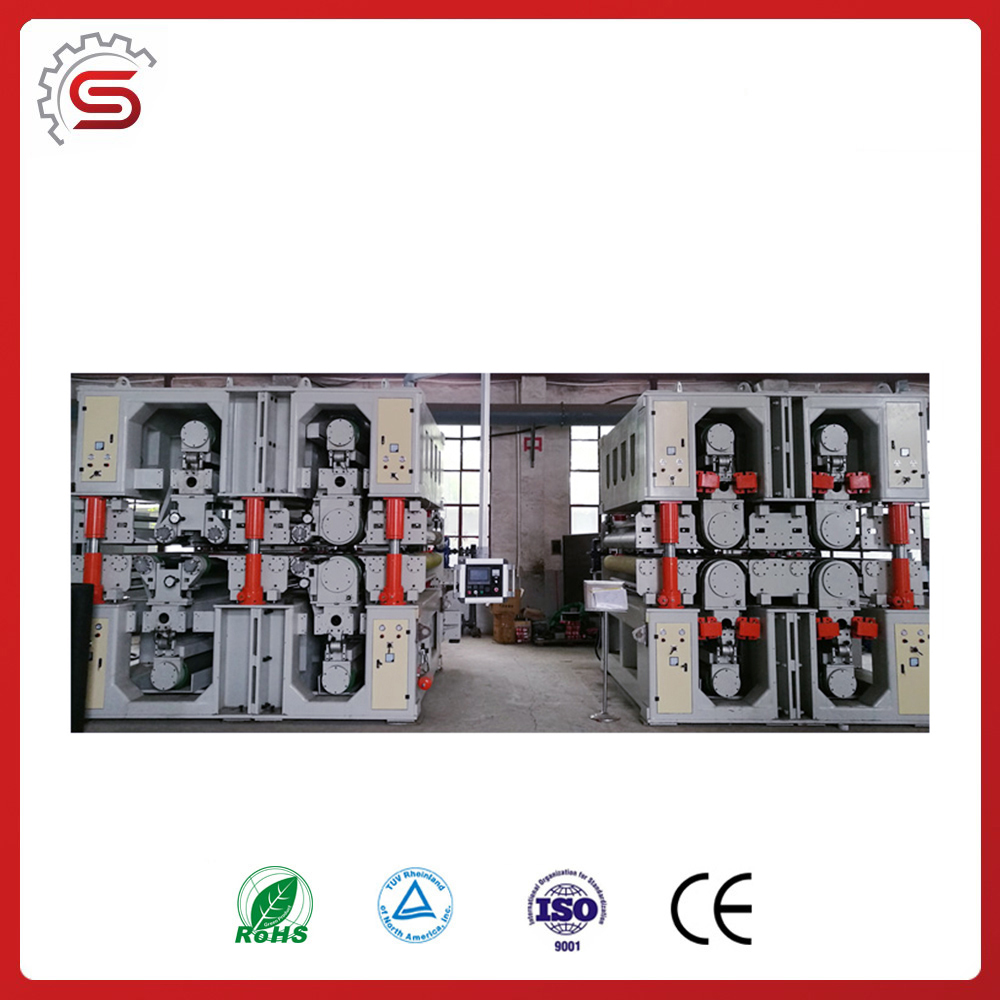

MM5813DRP-P Double Side Wide Belt Sander Calibrator Sanding Machine for Plywood

  • Application:1.High -gloss lacquer essential models2.Best of surface sophistication3.Primer sanding w
  • Hotline: 86-532-67703247
  • Fax: 86-532-68067870
  • Email:mike@sinosteeler.com
  • Detail

  • Contact Us

Application:

1.High -gloss lacquer essential models

2.Best of surface sophistication

3.Primer sanding wood and melamine board preferred models.



Features:

1.The machine is designed for sanding primer paint after coating designed for a variety of flat products, especially wood-based tablet, by this machine sanding smooth finish, no white edges.

2.The body plate bending welding, heavy, stable, and annealed, long-term will not be deformed.

3. Belt operation with frequency control imported converter, for a variety of paint properties of the belt used in photoelectric control.

4.The feeding speed adopts stepless speed control(Frequency controller is optional). Table lifting adopts four-column lifting mechanism, without shaking, a small error.

5.Automatic Thickness Measurement Systems(Optional).

6.Front and back double emergency knob, can control the machine to urgently stop within 3-5 Seconds.

7.Photoelectricity Switch Blower adopt import photo electric travel switch blower automatic,the sanding belt oscillating.

8.Sanding paper swing controlled by air power, swing is smooth and even.

9.Electric parts are all famous brand at home and abroad.



Advantage:

1.   Faults Display fitted (sanding paper right and left deviation, inadequate air pressure, emergency knob, over thickness work piece). It’s easy to judge basic equipment trouble. Faults emergency stop adopts automatically descend protection facility, the panel surface won’t be damaged from emergency stop.

2.Use branded conveyor, grinding duration is 3-5 times as ordinary conveyor.

3.Conveyor speed adjusted by stepless speed control (frequency controller is optional), easy adjusting. It can be adjusted as per the work piece in processing to improve sanding quality.

4.Conveyor use marble material, its shape won’t be changed because of temperature.

Precision and grinding duration is higher than steel conveyor.

5.The safety device: On the control panel has an emergency stop button (latching), left and right side in the sand shelf containing two photoelectric switch; relay pressure in low pressure pneumatic system operation, equipped with disc brakes on the motor pulley to parking brake to ensure rapid emergency occurs.

6.The unique suction device, so that a better cleaning effect.

Model

MM5813

Working width

1300mm

Working thickness

5-100mm

Working length

≥500mm

First sanding belt speed

28m/s

Second sanding belt speed

26m/s

Feeding speed

8-40m/min

Main motor power

75kwx2; 55kwx2

Feeding motor power

15kw

Total power

280kw

Working air pressure

0.55Mpa

Air flow for dust collector

32000m³/h

Size of sanding belt(PxW)

3000x1350

3320x1350

Overall dimension(LxWxH)

3450x3500x3150

mm

Net weight

3500kg
