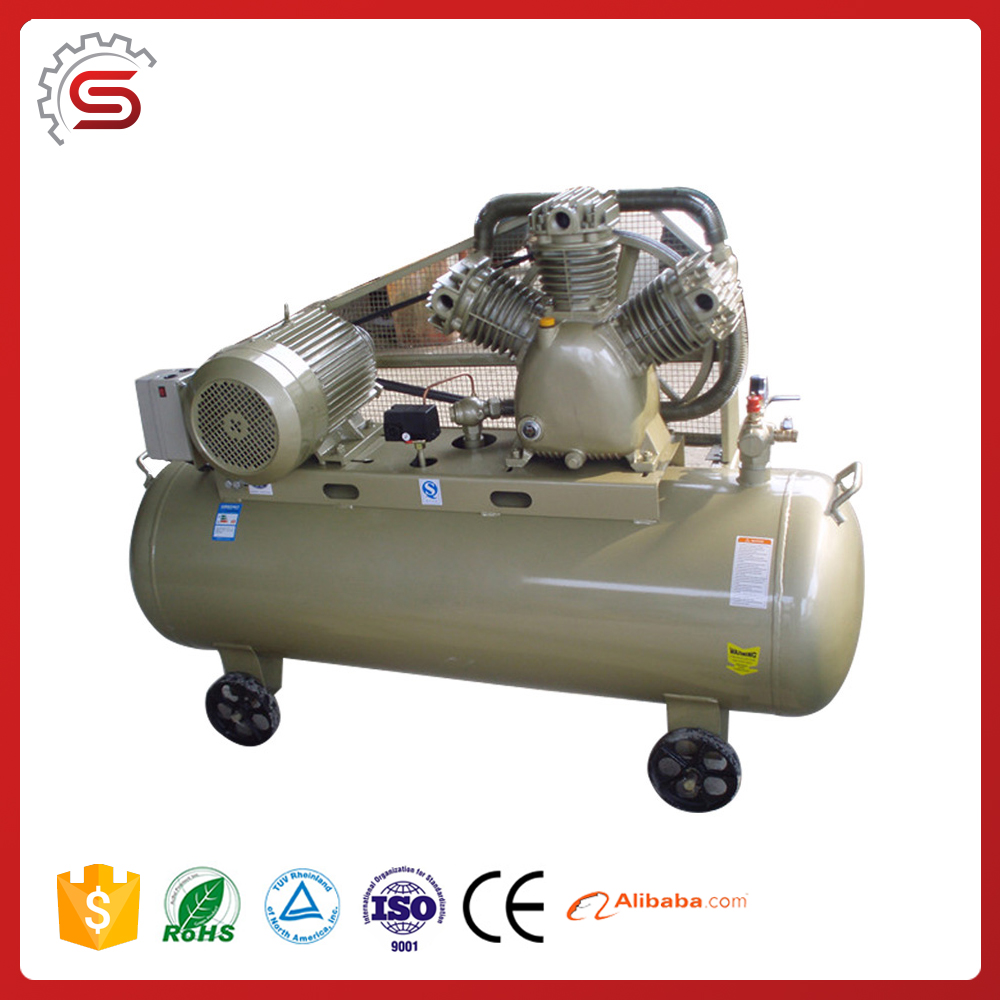

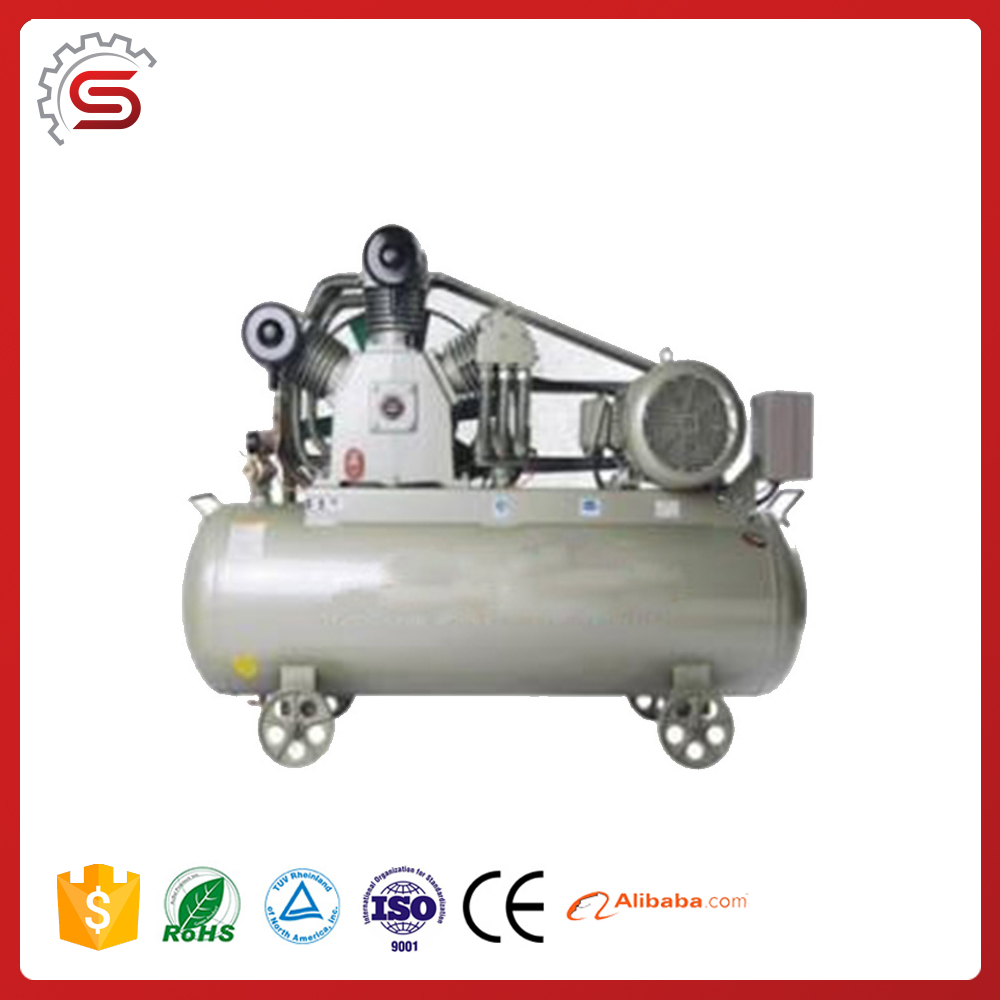

Air compressor
- ModelLW3708LW4708LW6708LW9008LW10008LW16008LW20008MotorKW/HP3/44/4.55.5/7.57.5/107.5/1011/1515/20Vol
- Hotline: 86-532-67703247
- Fax: 86-532-68067870
- Email:mike@sinosteeler.com
Related products
Detail
Contact Us
| Model | LW3708 | LW4708 | LW6708 | LW9008 | LW10008 | LW16008 | LW20008 | ||
| MotorKW/HP | 3/4 | 4/4.5 | 5.5/7.5 | 7.5/10 | 7.5/10 | 11/15 | 15/20 | ||
| Voltage/Frequency(V/HZ) | 380V/50HZ | ||||||||
| Cylinder(mm*NO.) | 65*3 | 80*2 | 80*3 | 90*3 | 90*3 | 100*3 | 120*3 | ||
| RPM(rpm) | 1000 | 950 | 830 | 830 | 830 | 890 | 860 | ||
| Inlet gas V(L/min/cfm) | 478/16.87 | 573/20.23 | 751/26.5 | 1029/36.32 | 1029/36.32 | 1677/59.2 | 2625/92.66 | ||
| Exhaust volume(L/min/cfm) | 360/12.71 | 480/16.95 | 670/23.66 | 900/31.78 | 1000/35.31 | 1600/56.50 | 2000/70.63 | ||
| Exhaust pressure(Bar/Psi) | 8/115 | ||||||||
| Air tank(L) | 105 | 120 | 160 | 225 | 280 | 300 | 410 | ||
| Dimension(mm) | 1200*460*865 | 1380*485*975 | 1530*480*1070 | 1530*580*1070 | 1650*600*1130 | 1708*740*1260 | 1894*765*1350 | ||
| N.W(kg) | 102 | 160 | 190 | 255 | 280 | 410 | 465 | ||
