Sliding table saw MJ6132TD
- MJ6132TD1.Apply to processing all kinds of density boards, shaving boards, wood-based panels, ABS pa
- Hotline: 86-532-67703247
- Fax: 86-532-68067870
- Email:mike@sinosteeler.com
Detail
Contact Us
MJ6132TD
1.Apply to processing all kinds of density boards, shaving boards, wood-based panels, ABS panels, PVC panels, organic glass plates and solid wood and others with wood structure and similar hardness.

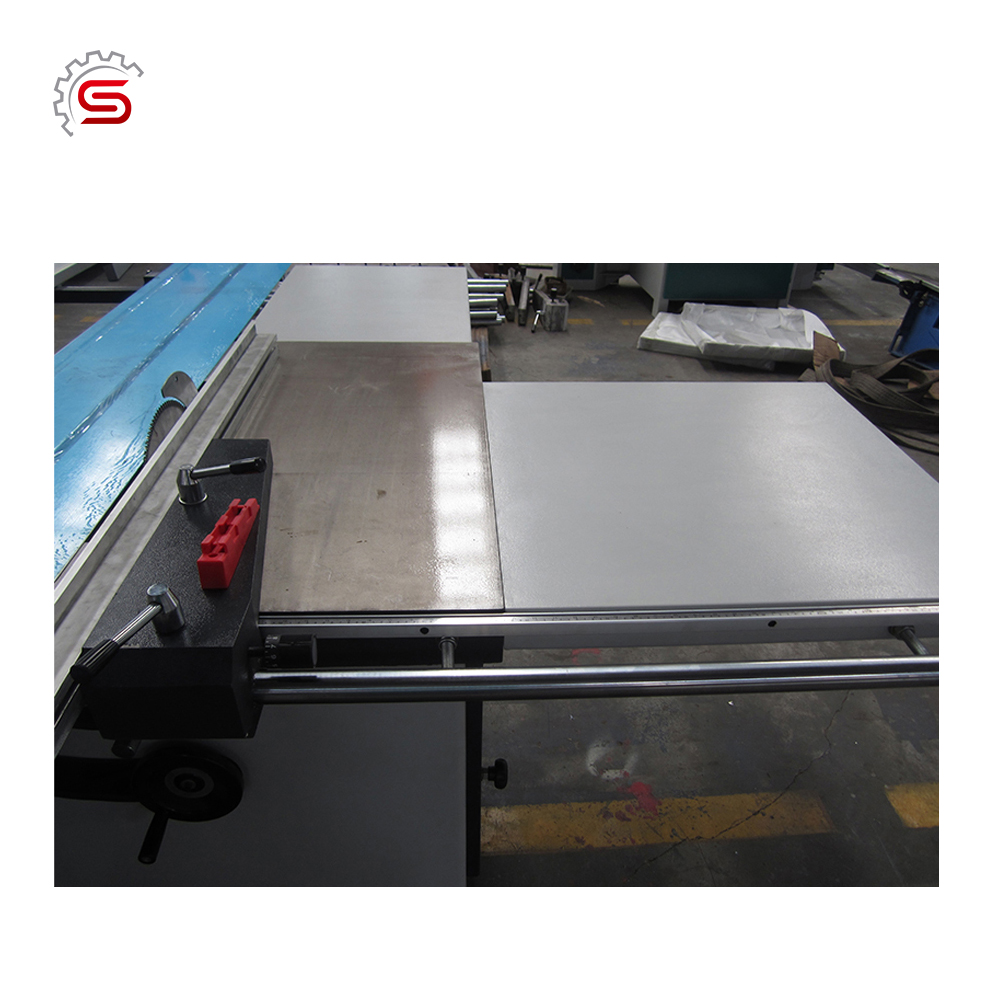

2.Made of high-strength extruded aluminum alloy, movable table is high in strength and won't bend.
3.With oxidation treatment, movable table surface is beautiful and hard wearing.
4.Movable table guide track is plating chromium steel bars structure,
exact and durable.

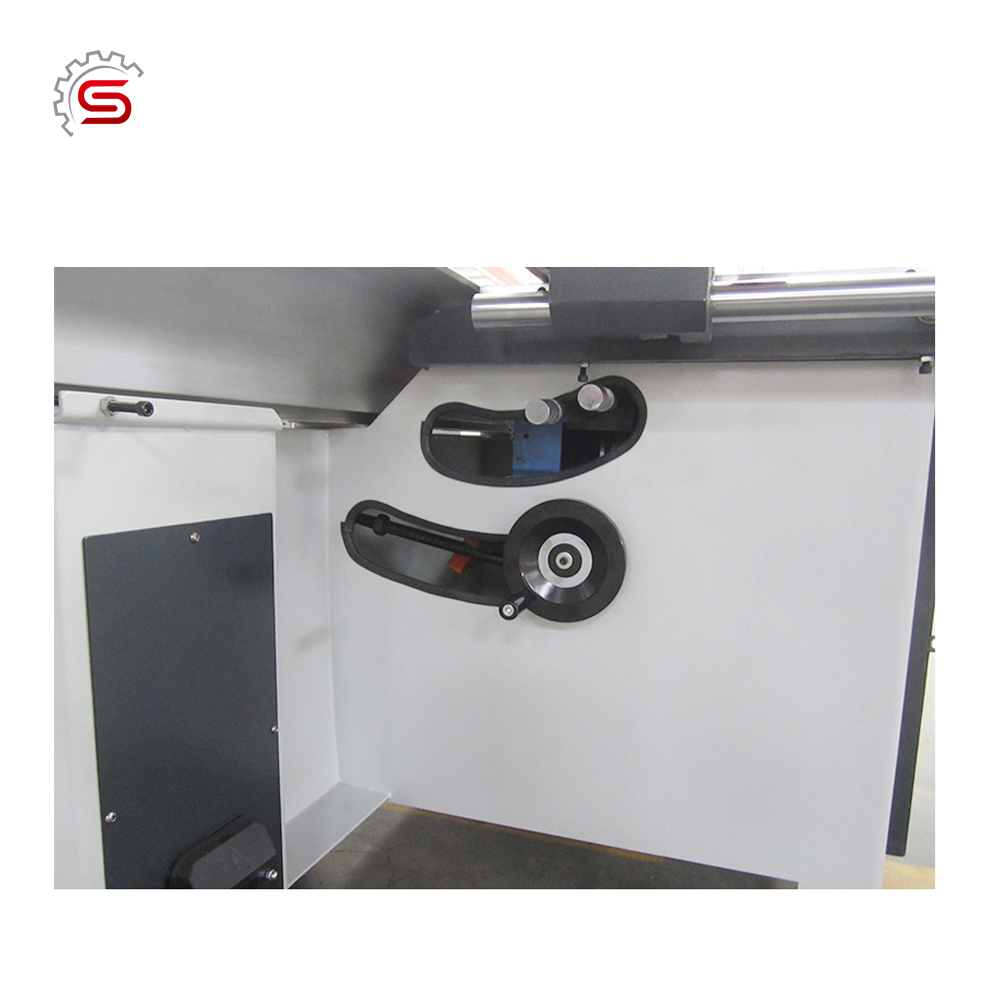

5.Manual titling and up/down for saw blade.

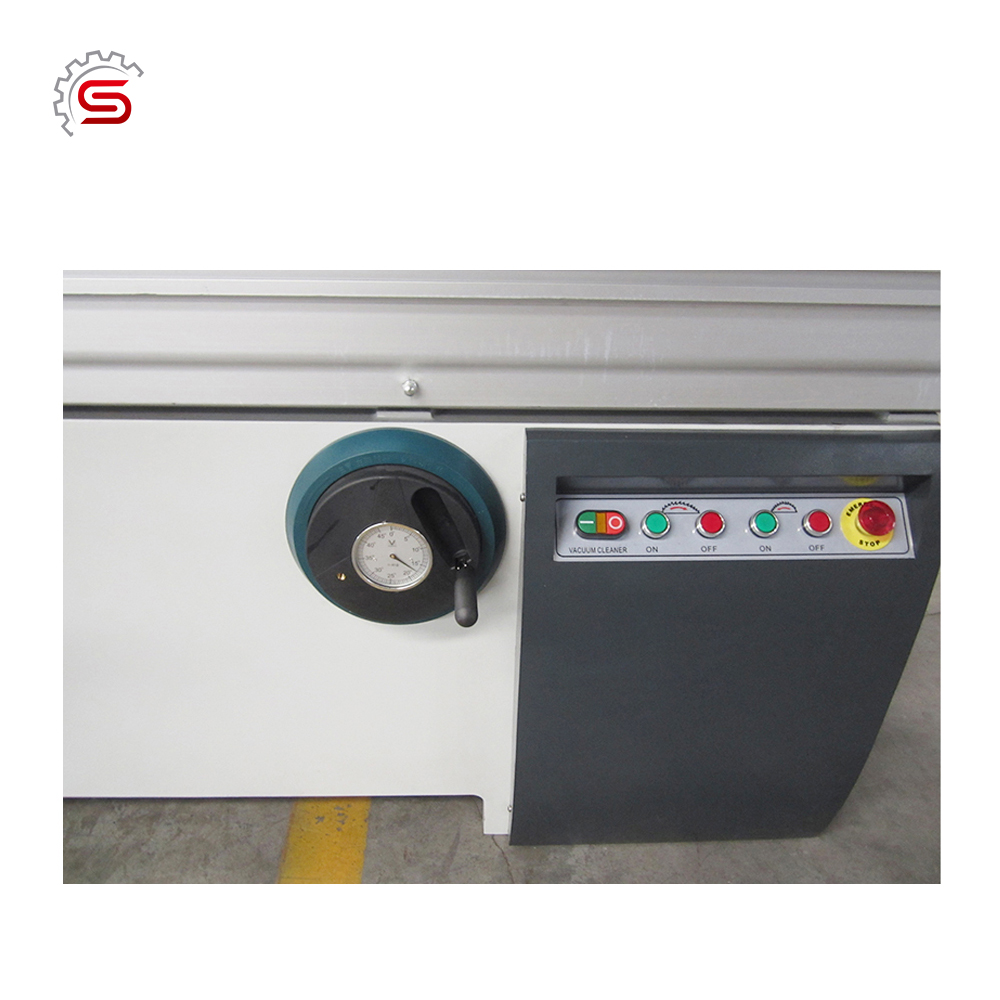

6.Tilt angles of main and scoring saw blades are displayed directly by precision inclinometer.
| Dimension of sliding table | 3200*375mm | |||
| Gross cut capacity | 3200mm | |||
| Width of cut between saw blade and rip fence | 1250mm | |||
| Saw blade diameter | 300mm | |||
| Height of cut (diameter:300mm) | 80mm | |||
| Speed of main saw spindle | 4500/6000rpm | |||
| Main spindle diameter | 30mm | |||
| Tilting saw blade | 45 tilting | |||
| Main motor | 5.5kw | |||
| Scoring saw blade diameter | 120mm | |||
| Speed of scoring saw blade | 8000r/min | |||
| Scoring spindle diameter | 20mm | |||
| Scoring motor | 1.1kw | |||
| Net weight | 850kg | |||
| Gross weight (with wooden package) | 900kg | |||
| Overall dimensions | 3200x3150x900mm | |||
