R-RP1300 New Type High Configuration top sanding machine
- Product Description Features:1.R-RP1300/2Roller and 1Pad Model:The front roller is adjustable s
- Hotline: 86-532-67703247
- Fax: 86-532-68067870
- Email:mike@sinosteeler.com
Detail
Contact Us
Product Description
Features:

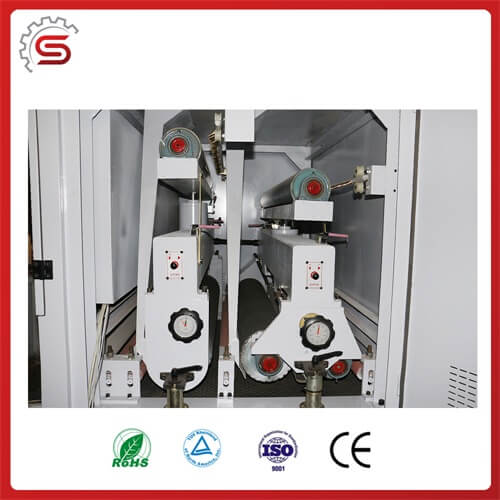

1.R-RP1300/2Roller and 1Pad Model:The front roller is adjustable steel roller,the back one is rubber roller with sanding pad,this structure is suitable for thickness-fixed sanding and fine polishing of all kinds of boards.
2.The machine tool is fit a large quantity of sand and can be opplited to other surface machining of solid wood plate alignment,lumber plywood,other building boards and solid boards.
3.The machine tool adopts advanced photo-electricity technology and information manage technology combined with mace-to-measure roler for confirming thickness and main electric machine with high-power which can improve the working accuracy and panel quality.
4.The machine tool has the humanistic control function,it can confirm the thickness automatically and control with program that may made the operation more convenient.
Technical Parameters:
Max Working Width | 1300mm |
Working Thickness | 2-110MM(Option 2-160mm) |
Consumption of Compressed Air | 1.5m³/min |
Main Motor Power | 30kw,22kw |
Total Motor Power | 56.74kw |
Belt Speed | 6-30m/min |
Size of Sanding Belt | 1330x2200mm |
Working Air Pressure | >=0.55MPa |
Suction Average Wind Speed | 25-30m/s |
Overall Dimensions(L*W*H) | 2500x1970x1950mm |
Weight | 3200kg |

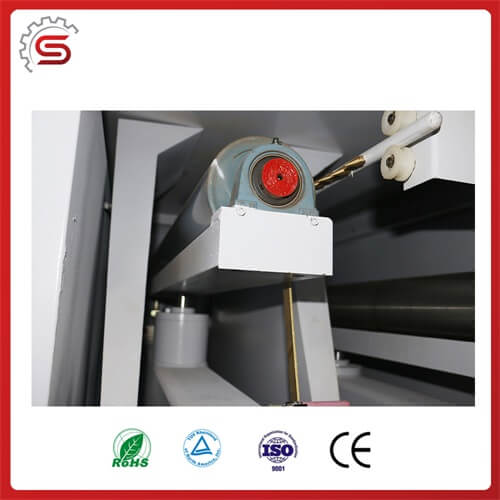

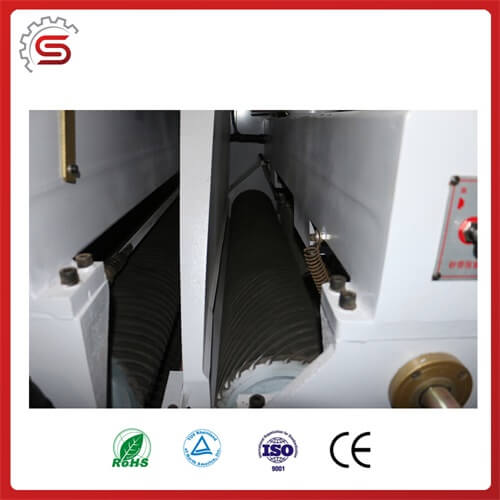

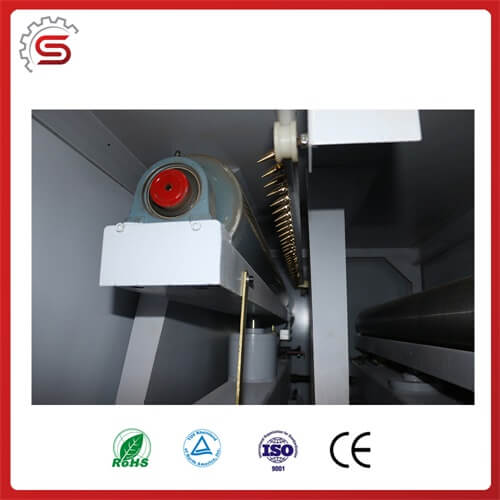

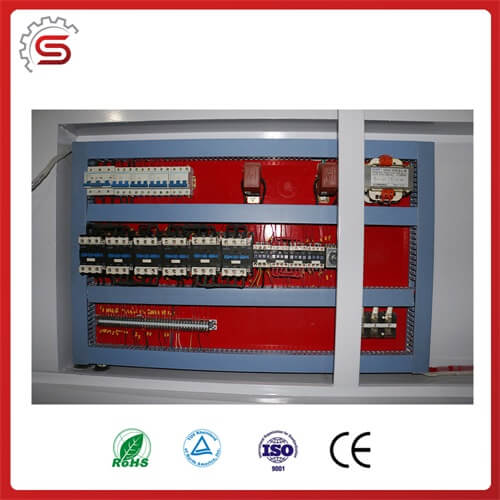

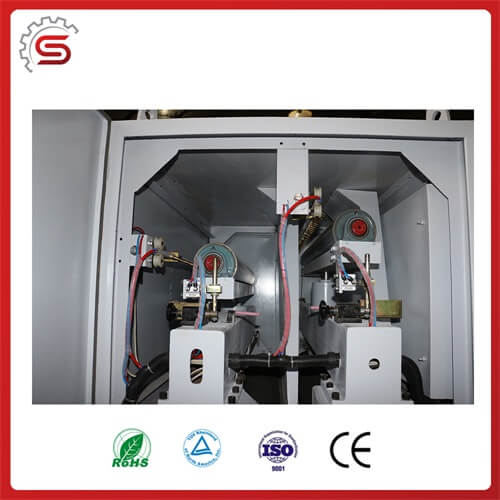

Product Detail:
Packaging & Shipping
1. Packaging Details: Stretch film with wooden case or as your request
2.Shipping:We have rich experience in exporting machines to the world and can supply all kinds of different shipping
terms!
3.Timely delivery and transportation
Foreigners With Us:
Our Services
We have years of manufacturing woodworking machine.OEM and ODM service available.
Sample Service :
If you want to test the performance of machine ,we can sent sample to you with cost offer .
Customized Service :
Our factory has been specialized in producing woodworking machines for over 33 years .We have very high research and development capabilities to meet the requirements of custom.
After-sale Service
1) The machine guarantee is 12 months.
2) 24 hours technical support by email or calling.
3) Friendly English version manual and operation video CD disc.
4)Engineers available to service machiner overseas.
