MSK2113R Heavy-Duty Wide-Belt sanding machine

  • MSK2113R Heavy-Duty Wide-Belt sanding machine   Performance:The machine adopts advanc
  • Hotline: 86-532-67703247
  • Fax: 86-532-68067870
  • Email:mike@sinosteeler.com
  • Detail

  • Contact Us

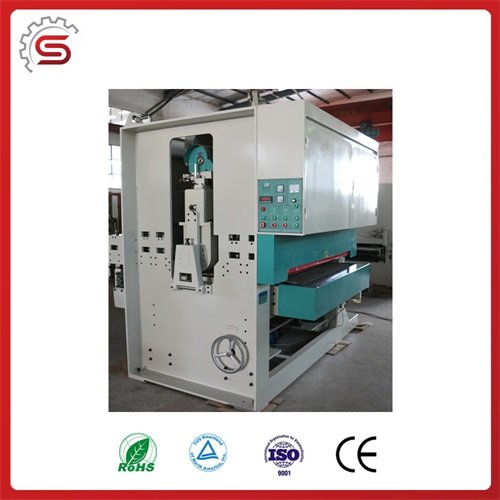

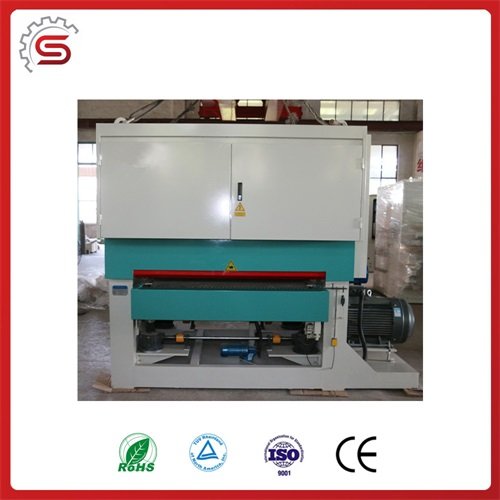

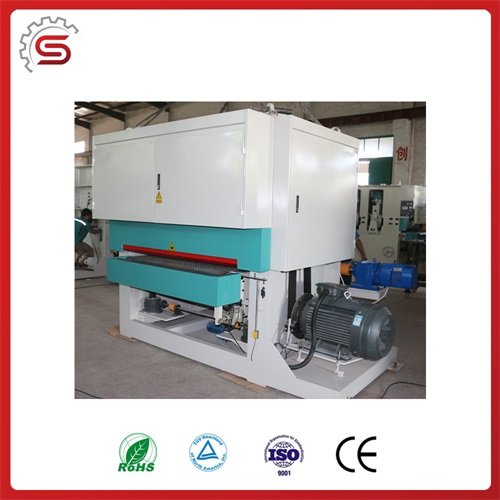

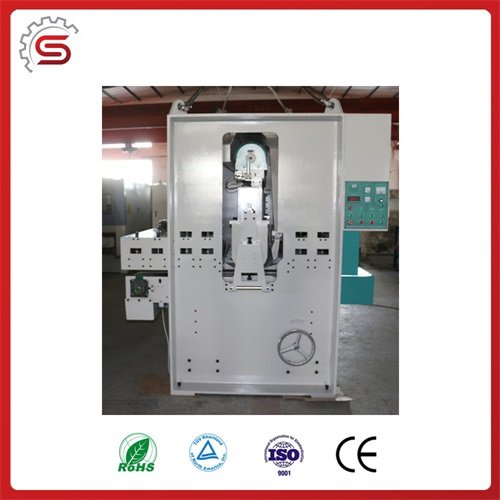

MSK2113R Heavy-Duty Wide-Belt sanding machine





Performance:

The machine adopts advanced foreign technology and its frame adopts welding integral structure,which improves its rigidity and precision.The machine adopts frequency converstion speed governor so that it can meet the different demands.The machine is mainly used in panel calibrating and fine sanding such as plywood,flake board,density board,glued laminated timber ,block board,calcium silicate board,fiber cement board and so on.

Technical Parameter:

Max working width

1300mm

Working thickness

5-100mm

Working length

>500mm

First sanding belt speed

28m/s

Speed of feed belt

8-40m/min

Main motor power

55kw

Feeding motor power

7.5kw

Total motor power

65kw

Size of sanding belt

2620x1320mm

Working air pressure

>=0.55MPa

Consumption of compressed air

10000m³/h

Suction average wind speed

25-30m/s

Overall dimensions(LxWxH)

2900x2370x2500mm

Weight

6000kg

Quotation valid time: 30 days.

After sales service:

The seller will take charge of guide of the installation, while the buyer have to afford the international round ticket from leaving airport to destination, and other fees like accommodation, insurance in local. A Chinese interpreter is accompanying the guide.

Guarantee: mainframe 1 year and electric component for 6 months with effect from 30 days after arrival of the machine at discharge port.



  Contact Person: Megan  Email: sales009@sinosteeelr.com

  Mob: 0086-15621188070  Whatsapp: 0086-15621188070
