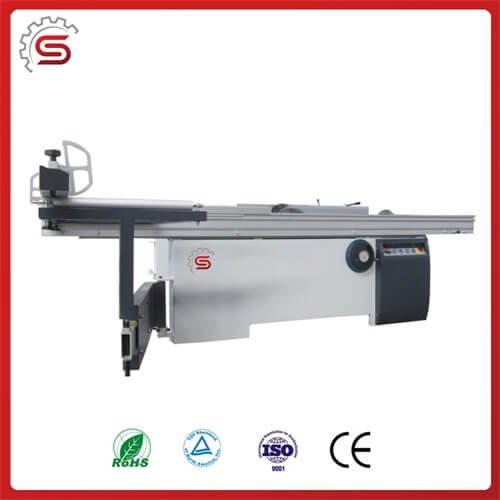

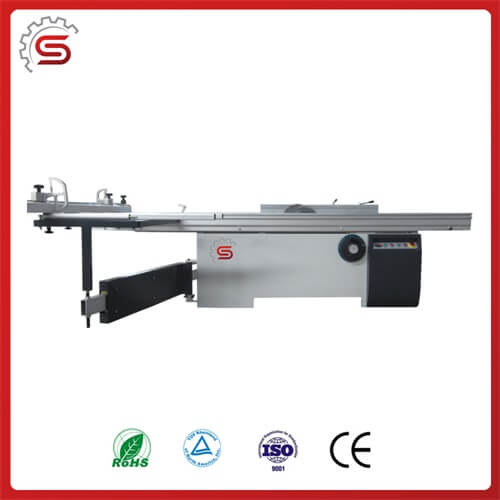

Contemporary Useful High Precision MJ6132TD Sliding table panel saw

  • Feature:1.Apply to processing all kinds of density boards, s
  • Hotline: 86-532-67703247
  • Fax: 86-532-68067870
  • Email:mike@sinosteeler.com
  • Detail

  • Contact Us

Feature:

1.Apply to processing all kinds of density boards, shaving boards, wood-based panels, ABS panels, PVC panels, organic glass plates and solid wood and others with wood structure and similar hardness.

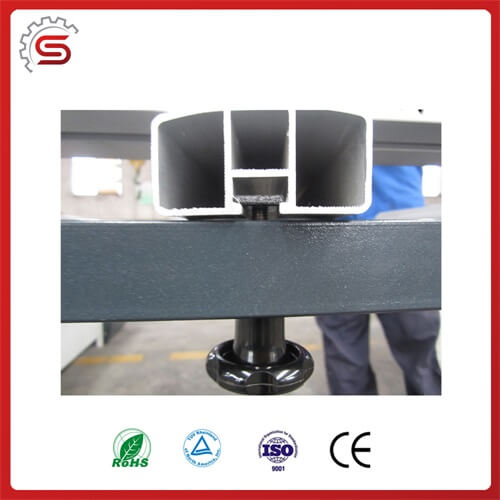

2.Made of high-strength extruded aluminum alloy, movable table is high in strength and won't bend.
3.With oxidation treatment, movable table surface is beautiful and hard wearing.

4.Movable table guide track is plating chromium steel bars structure,exact and durable.

5.Manual titling and up/down for saw blade.

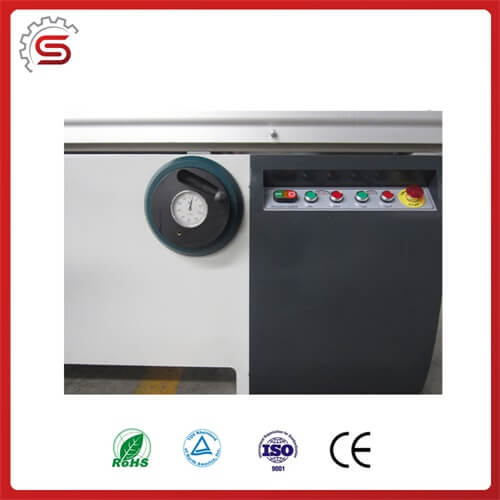

6.Tilt angles of main and scoring saw blades are displayed directly by precision inclinometer.

Technical Parameter:

Dimension of sliding table3200*375mm
Gross cut capacity3200mm
Width of cut between saw blade and rip fence1250mm
Saw blade diameter300mm
Height of cut (diameter:300mm)80mm
Speed of main saw spindle4500/6000rpm
Main spindle diameter30mm
Tilting saw blade 45 tilting
Main motor5.5kw
Scoring saw blade diameter120mm
Speed of scoring saw blade8000r/min
Scoring spindle diameter20mm
Scoring motor1.1kw
 Net weight850kg
Gross weight (with wooden package)900kg
Overall dimensions3200x3150x900mm

Product Details:

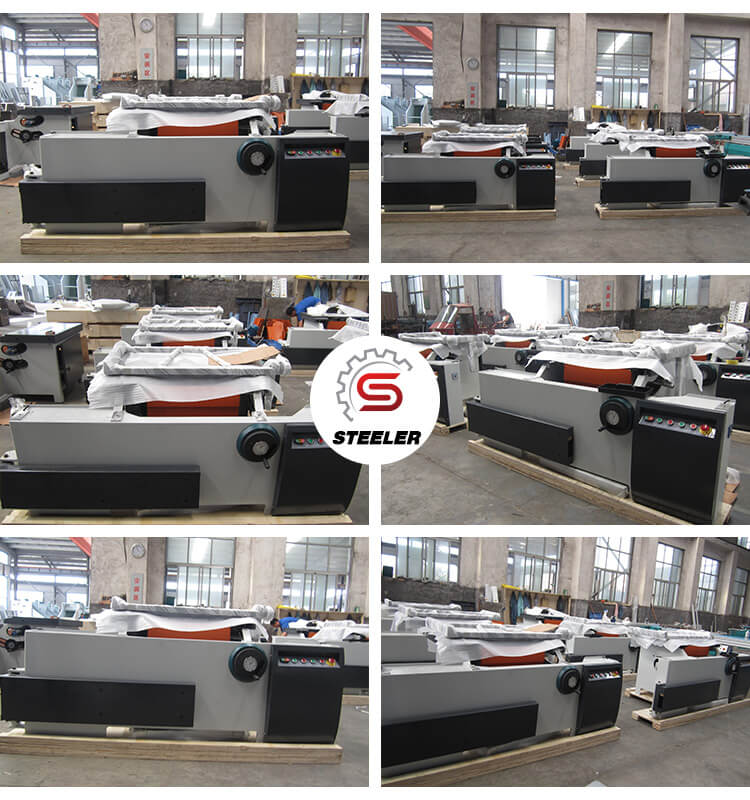

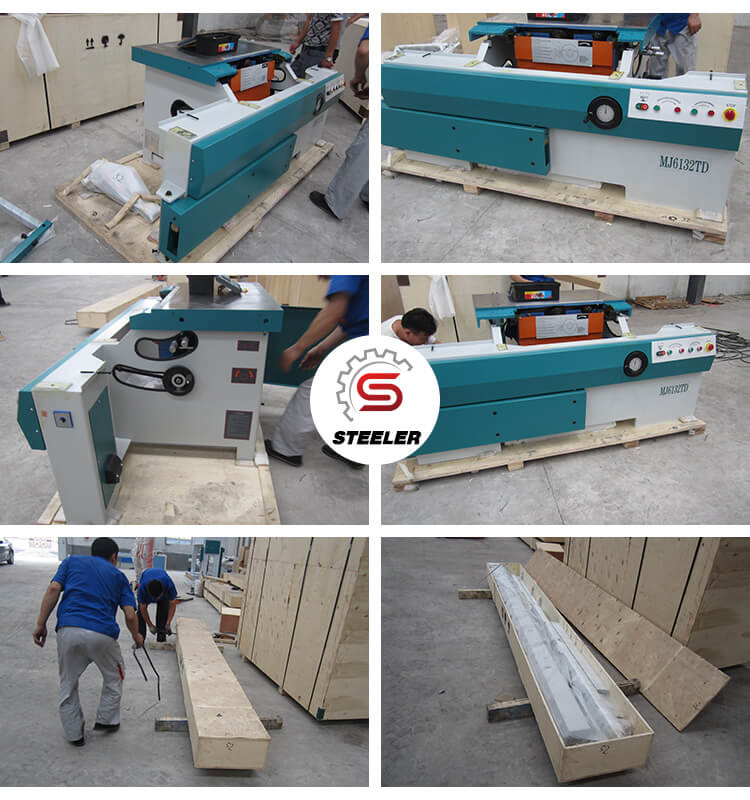

Packaging & Shipping

1.The Packaging Details: Stretch film with wooden case or as your request



2.Shipping:We have rich experience in exporting machines to the world and can supply all kinds of different shipping terms!



3.Timely delivery and transportation



Customers with us:


Our Services

1.Good after-sale Services is our strength

1) The machine guarantee is 12 months.

2) 24 hours technical support by email or calling.

3) Friendly English version manual and operation video CD disc.

4)Our engineers can provide services to overseas.

2.Main Market

Which have been exported to a lot of country and Regions . Such as Europe , Russia, Southeast Asia . Middle East . North America  and south America , Australia .

3.Sample Service :

If you want to test the performance of machine ,we can sent sample to you with cost offer .

4.Customized Service :

Our factory has been specialized in producing woodworking machines for over 33 years .We have very high research and development capabilities to meet the requirements of custom.

5.We have years of manufacturing woodworking machine,OEM and ODM service available.
