Cutting machine MJ61-32TD perfect woodworking panel saw
Product Description
Model | MJ61-32TD |
Dimension of sliding table | 3200*375mm |
Gross cut capacity | 3200mm |
Cast iron table | 1000*570mm |
Saw blade diameter | 300mm(Option:250-400mm) |
Height of cut (diameter:300mm) | 80mm |
Speed of main saw spindle | 4000/6000rpm |
Main spindle diameter | 30mm |
Tilting saw blade | 45 angle |
Main motor | 5.5kw |
Scoring saw blade diameter | 120mm |
Speed of scoring saw blade | 8000r/min |
Scoring spindle diameter | 20mm |
Scoring motor | 1.1kw(0.75kw) |
Width of cut between saw blade and rip | 1250mm |
Saw blade’s lifting and down | Electric lifting and down |
Angle tilting system | Manual with normal gauge |
Voltage/phase | 380v/3pase or as your required |
Voltage frequency | 50hz(60hz) |
Cast iron table | 125-130kg |
Machine body metal plate thickness | 6mm |
Overall dimensions | 3200x3150x900mm |
Gross Weight/Net Weight | 900kg/850kg |
Quotation | 2000-3000usd |

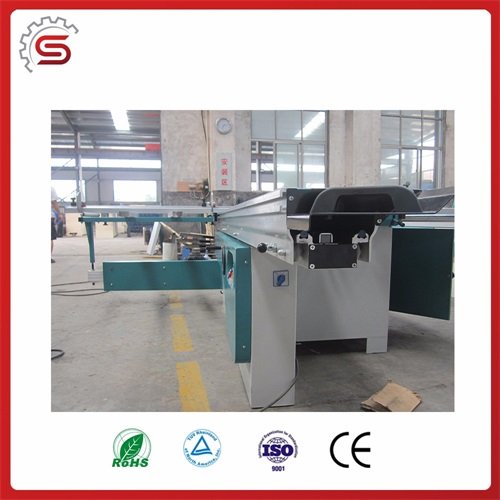

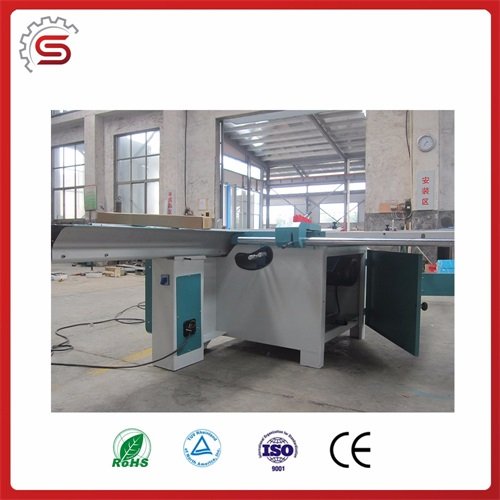

Detailed Images
Packaging & Shipping
1.Packing Details:Stretch film with wooden case or as your request .
2.Shipping: We have rich experience in exporting machines to the world and can supply all kinds of different shipping terms!
3.Timely delivery and transportation!
Our Services
1.Good after-sale Services is our strength
1) The machine guarantee is 12 months.
2) 24 hours technical support by email or calling.
3) Friendly English version manual and operation video CD disc.
4)Our engineers can provide services to overseas.
2.Main Market
Which have been exported to a lot of country and Regions . Such as Europe , Russia, Southeast Asia . Middle East . North America
and south America , Australia .
3.Sample Service :
If you want to test the performance of machine ,we can sent sample to you with cost offer .
4.Customized Service :
Our factory has been specialized in producing woodworking machines for over 33 years .We have very high research and development capabilities to meet the requirements of custom.
5.We have years of manufacturing woodworking machine,OEM and ODM service available.
FAQ
1) Q: What's the MOQ?
A: MOQ is one set.
2) Q: Provide custom machine Yes or No?
A: Yes. We can provide custom machine for clients.
3) Q: What's the payment terms?
A: T/T 30% in advance and balance before shipment or by negotiation.
4) Q: Are you factory or trade company?
A: We are factory and trade company. STEELER is our brand.
5) Q: How long is the warranty period?
A: One year warranty period except the quick-wear parts.
6) Q: Do you have professional engineers?
A: Yes. We have professional engineers and designers. We can provide OEM products.
