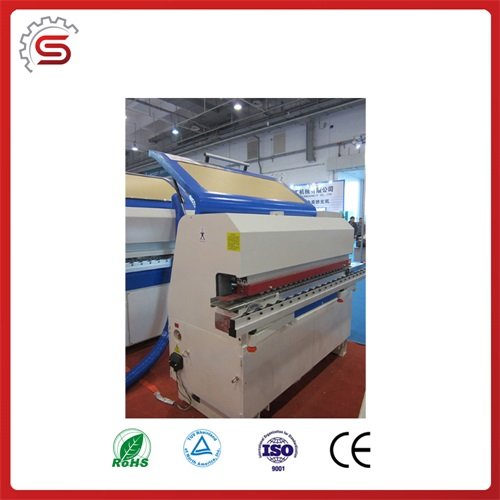

Edge banding corner rounding machine MFB503 MDF edge banding machine
Product Description
Panel thickness | 10-50mm |
Edging thickness | 0.4-3mm (PVC) |
Min.width of panel | >=60mm |
Belt height | 12-50mm |
Panel feeding speed | <=18m/min |
Pneumatic power | 0.7Mpa |
Power | 380V 3N/PE 50HZ |
Panel feeding motor | 1.1kw 50HZ |
Glue axis motor | 0.75kw |
Fine trimming motor | 0.5kwx2 200HZ 12000r/min |
Buffing motor | 0.18kwx2 50HZ 1400r/min |
Heating power of glue tank | 2.6kw |
Secondary heating power | 0.12kw |
Installed power | 6.43kw |
Glue temperature for edging(reference) | 180-200°C |
Overall dimensions | 2420x1400x1400(mm) |
Weight | 850kg |
The function:
1.Edging 2..Edge cutting 3.Fine finishing 4.buffing

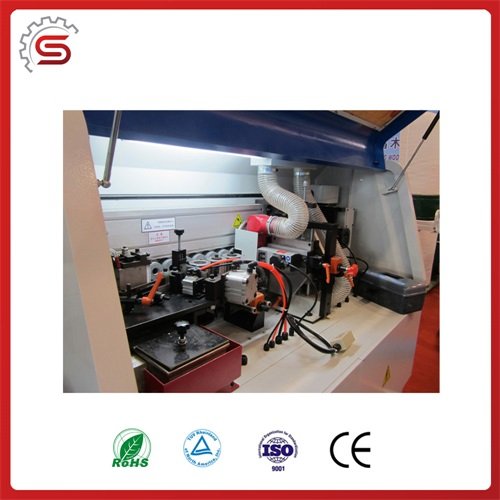

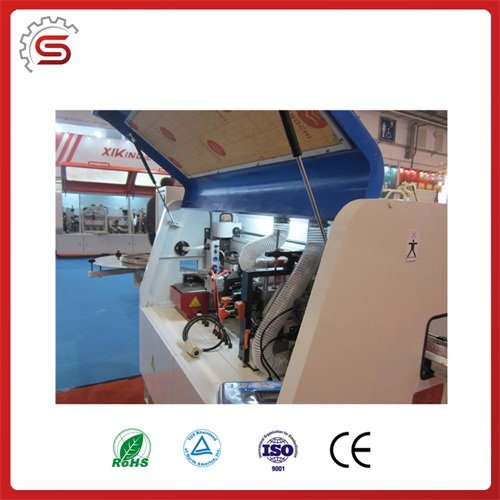

Detailed Images

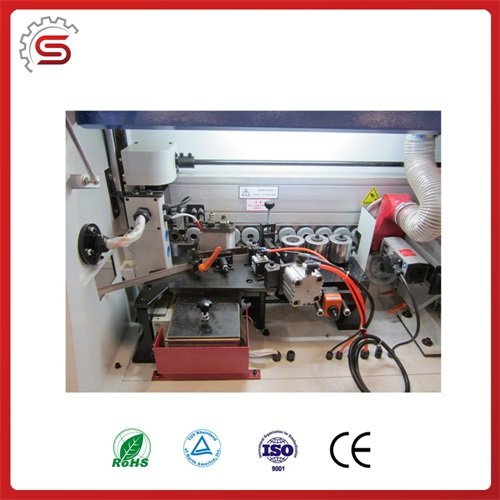

1.Gluing&edging unit adopt lower glue tank,whole screwy feeding unit,to make feeding glue conveniently and equally.

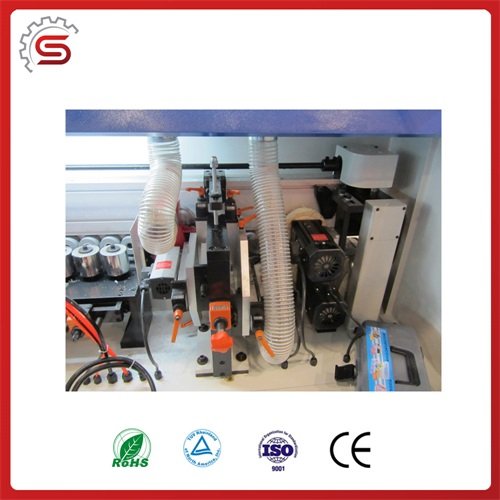

2.Fine trimming unit to trim the exceeding edge on the top and the bottom side of the panel.It is completed with two motors and copying .
3.Buffing unit to clean the edge of the finished panel,it is completed with two independent motors and two cotton polishing wheels.
customer with us
Our Services
1.Good after-sale Services is our strength
1) The machine guarantee is 12 months.
2) 24 hours technical support by email or calling.
3) Friendly English version manual and operation video CD disc.
4)Our engineers can provide services to overseas.
2.Main Market
Which have been exported to a lot of country and Regions . Such as Europe , Russia, Southeast Asia . Middle East . North America
and south America , Australia .
3.Sample Service :
If you want to test the performance of machine ,we can sent sample to you with cost offer .
4.Customized Service :
Our factory has been specialized in producing woodworking machines for over 33 years .We have very high research and development capabilities to meet the requirements of custom.
5.We have years of manufacturing woodworking machine,OEM and ODM service available.
