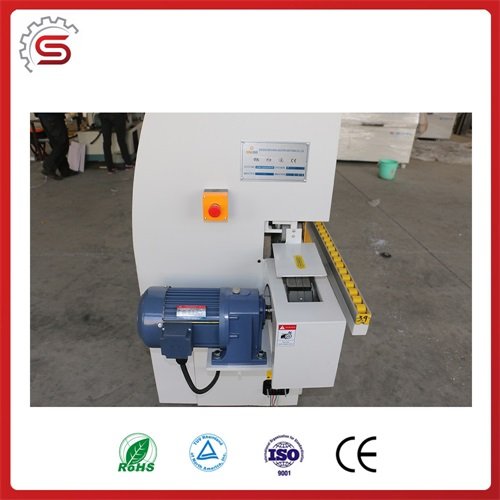

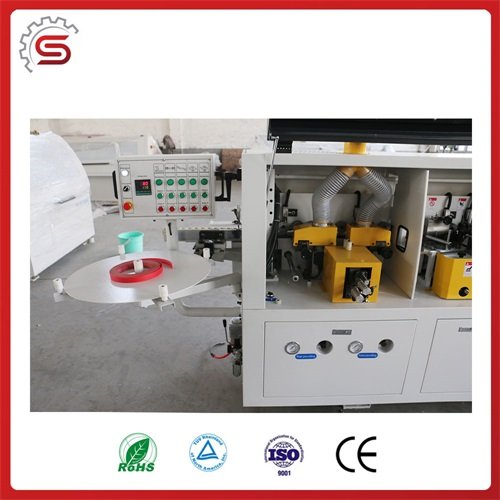

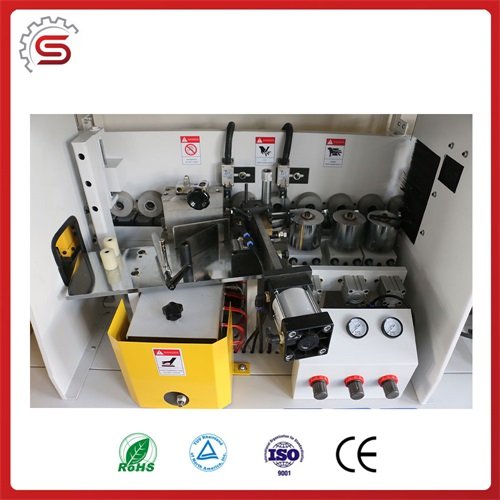

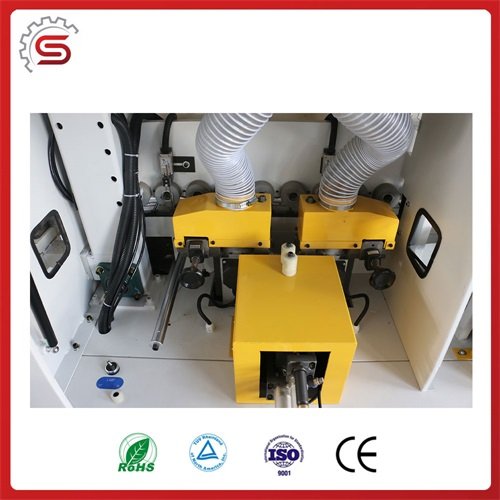

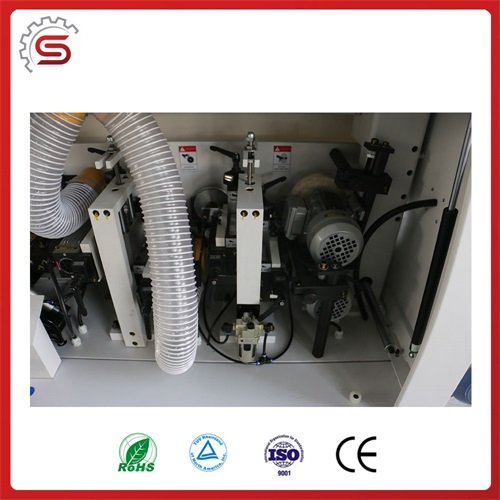

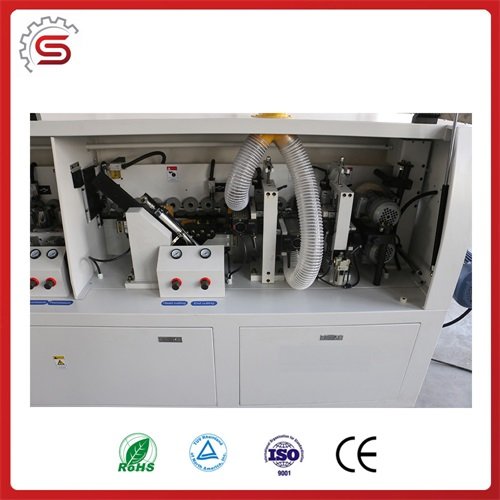

MFZ504AY Automatic Edge Banding Machine
Functions:
1.Pre-milling 2.Edging 3.Edge cutting 4.End trimming 5.Fine trimming 6.Scraping 7.Buffing
Technical Parameter:
Panel thickness | 10-40mm |
Belt thickness | 0.4-3mm (PVC) |
Belt width | 12-45mm |
Min.width of panel | >=50mm |
Min.length of panel | >=140mm |
Panel feeding speed | <=13m/min |
Pneumatic power | 0.7Mpa |
Power | 380V 3N/PE 50HZ |
Panel feeding motor | 1.5kw |
Glue axis motor | 0.37kw |
Pre-milling motor | 1.8kwx2 18000r/min |
End cutting motor | 0.55kwx2 18000r/min |
Fine trimming motor | 0.75kwx2 18000r/min |
Buffing motor | 0.18kwx2 1400r/min |
Heating power of glue tank | 1.5kw |
Installed power | 10.6kw |
Glue temperature for edging(reference) | 150-180°C |
Overall dimensions | 3900x750x1360mm |
Packaging dimensions | 3900x810x1480mm |
Net Weight | 1600kg |
Gross Weight | 1700kg |
