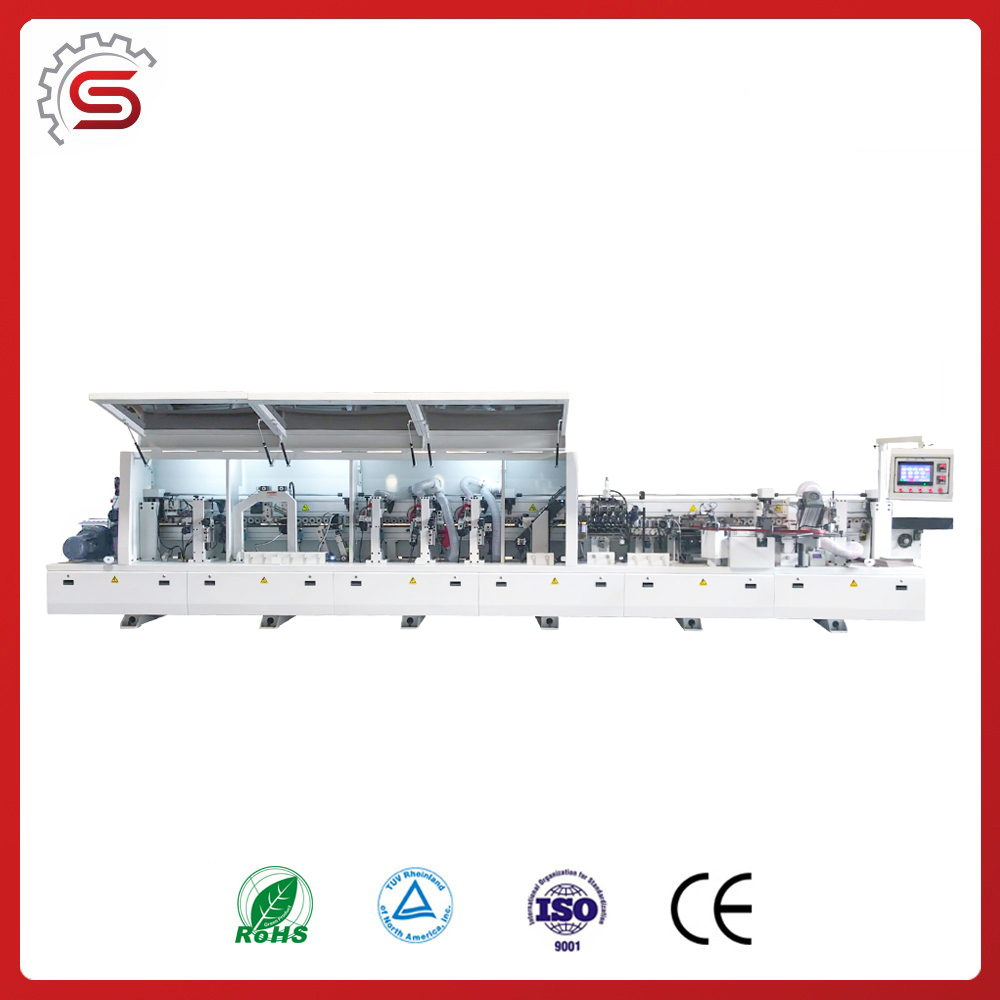

plywood door edge banding machine bevel edge bander with corner trimming

  • Application:The machine is suitable for such plates: MDF, block board, solid wood board, particleboa
  • Hotline: 86-532-67703247
  • Fax: 86-532-68067870
  • Email:mike@sinosteeler.com
  • Detail

  • Contact Us

Application:

The machine is suitable for such plates: MDF, block board, solid wood board, particleboard, polymer door plates, plywood etc, straight line edging and trimming. Function: pre-milling,gluing,edge cutting,end trimming, rough trimming, fine rimming, corner trimming, scraping, buffing, slotting and so on. Edging smoothly and edging line is straight. The machine is stable, reliable and durable, with favorable price. It is especially suitable for large and medium-sized furniture manufacturers.

Advantage:

1.Adopt domestic famous motor and high quality electrical components.

2.The fuselage is firm and steady,thus increasing the stability of the whole machine.

3.Aluminum alloy beam is a relatively advanced method, its precision and straightness are far superior to cast iron.

4.Auto cleaning, high precision, high efficiency.

5.The machine can be customized.

6.Automatic and precise gluing procedure as well integrated double finishing side within one workflow .The end cutting can be done at the rear side of the machine.

7.Multiple Air cylinder will assembled on the machine, mainly used for positioned location assured the panel materials processing accuracy in a very high level.

8.Secondary Dust Exhaust System, mainly used for sawdust collection during processing period, to keep the material smooth and clean.

9.The machine adopts the devices of sound insulation, controlling of dust, platform frame Micro adjustment by manual operation.

Model

MFZ613

Overall dimensions

8350*910*1540mm

Min Panel Side

300(L)*60(W)

150(L)*150(W)

Feed speed

15-23m/min

Edge thickness

0.2-3mm

Panel Thickness

10-60mm

Panel Length

≥150mm

Panel Width

≥60mm

Working Air Pressure

0.6Mpa

Weight

2950kg

Total Power

20.44kw
