50ton hydraulic hot press machine AY214×8/5(5)HRC-B1 for sale
- 50ton hydraulic hot press machine AY214×8/5(5)HRC-B1 for sale &
- Hotline: 86-532-67703247
- Fax: 86-532-68067870
- Email:mike@sinosteeler.com
Detail
Contact Us

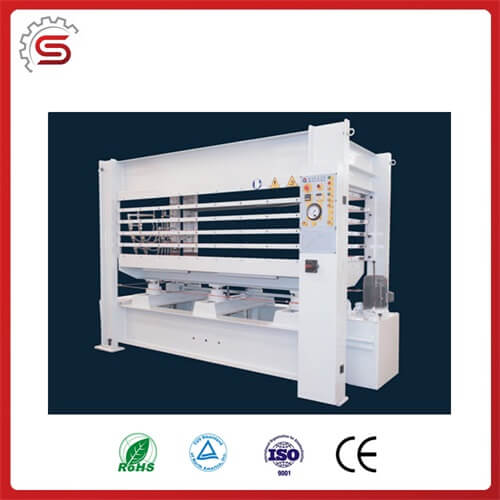

50ton hydraulic hot press machine AY214×8/5(5)HRC-B1 for sale
Technical Data
Product name： | HOT PRESS MACHINE |
Model： | |
Total pressure： | 50T |
Working layer： | 5 |
Platen No.& Size： | 2-2500x1300x42mm(Covered with mylar) |
Max platen opening： | 100mm |
Cylinder No.& Dia： | 4-φ100mm |
Max temperature： | 120℃ |
Heating way： | Electric heating with thermic oil |
Heating medium: | Thermic oil |
Hydraulic pump power | 5.5kw |
Loading way： | Length side,Manually |
Voltage： | As per your request |
Packing： | Bare but properly secured |
Gross Weight： | About 6000.00 kg |
Overall dimension: | 3500x1300x2060mm |
Container need： | 1X20'GP |
Best FOBQINGDAO | 9000-15000USD/SET |
Payment： | 30% by T/T as deposit, 70% by T/T before shipment. |
Remark： | The S.S platen is prepared by user |
Delivery time: | 30 days |
Function:
Laminating hot press is fit for the furniture factory or panel decorative plant, which can make lamination for panel, such as wooden door, core board, MDF, Plywood, chipboard with all kinds of decorative paper HPL or veneer. It can also be used for drying or leveling veneer.
Quotation valid time: 50 days.
After sales: The seller will take charge of guide of the installation, while the buyer have to afford the international round ticket from leaving airport to destination, and other fees like accommodation, insurance in local. A Chinese interpreter is accompanying the guide.
Guarantee: mainframe 1 year and electric component for 6 months with effect from 30 days after arrival of the machine at discharge port.
Contact Person: Megan Email: sales009@sinosteeler.com
Phone: 0086-15621188070 Whatsapp: 0086-15621188070
