Plywood machine 160T laminate hot press machine
- Plywood machine 160T laminate hot press machineProduct Description Product name:HOT PRESS MACHI
- Hotline: 86-532-67703247
- Fax: 86-532-68067870
- Email:mike@sinosteeler.com
Detail
Contact Us

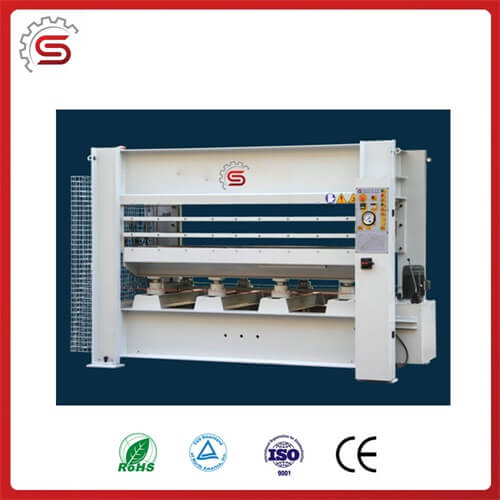

Plywood machine 160T laminate hot press machine
Product Description
Product name: | HOT PRESS MACHINE |
Model: | AY214×8/16(3)H1RC |
Total pressure: | 1600KN/160T |
Specific pressure: | 5.3Kgf/cm2 |
Working layer: | 3 |
Platen No.& Size: | 4-2500x1300x42mm(Covered with mylar) |
Platen opening: | 120mm |
Cylinder No.& Dia: | 10-φ85mm |
Max temperature: | 120℃ |
Heating way: | Electric heating with thermic oil |
Heating medium: | Thermic oil |
Installation power: | 53.5KW |
Platen opening way: | Manually |
Loading way: | Length side,Manually |
Voltage: | 380V 50HZ |
Packing: | Bare but properly secured |
Gross Weight: | About 8500.00 kg |
Overall dimension: | 3800*1410*2350mm |
Container need: | 1X20'GP |
Quotation valid time: 30 days.
After sales: The seller will take charge of guide of the installation, while the buyer have to afford the international round ticket from leaving airport to destination, and other fees like accommodation, insurance in local. A Chinese interpreter is accompanying the guide.
Guarantee: mainframe 1 year and electric component for 6 months with effect from 30 days after arrival of the machine at discharge port.

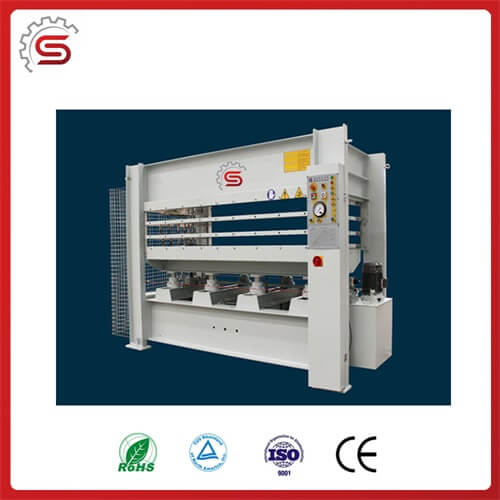

Detailed Images
Warehouse Factory
FAQ
1) Q: What's the MOQ?
A: MOQ is one set.
2) Q: Provide custom machine Yes or No?
A: Yes. We can provide custom machine for clients.
3) Q: What's the payment terms?
A: T/T 30% in advance and balance before shipment or by negotiation.
4) Q: Are you factory or trade company?
A: We are factory and trade company. STEELER is our brand.
5) Q: How long is the warranty period?
A: One year warranty period except the quick-wear parts.
6) Q: Do you have professional engineers?
A: Yes. We have professional engineers and designers. We can provide OEM products.
Our Services
1.Good after-sale Services is our strength
1) The machine guarantee is 12 months.
2) 24 hours technical support by email or calling.
3) Friendly English version manual and operation video CD disc.
4)Our engineers can provide services to overseas.
2.Main Market
Which have been exported to a lot of country and Regions . Such as Europe , Russia, Southeast Asia . Middle East . North America
and south America , Australia .
3.Sample Service :
If you want to test the performance of machine ,we can sent sample to you with cost offer .
4.Customized Service :
Our factory has been specialized in producing woodworking machines for over 33 years .We have very high research and development capabilities to meet the requirements of custom.
5.We have years of manufacturing woodworking machine,OEM and ODM service available.
customer with us
Company Information
Qingdao Steeler Woodworking Machinery Co., Ltd is a professional Manufacturer of various kinds of Sanding Machine, Polishing Machine and other mechanical equipment. The company’s sanding machine series is integrated with Germany, Italy and Taiwan's good mechanical properties, structure and the advanced polishing machine is not only draw lessons from the foreign advanced technology but also and highlights the Steeler people’s innovation, enterprising spirit, continuous research and development, making our polishing machine series the industry's leading edge products.
We have already approved the ISO9000 certification and we are awarded the "National AAA Grade Credit Enterprise" Brand in China. A capable R&D team, strong processing ability, reliable quality assurance, strict testing ensure the company win trust of users.
Rich experience, sophisticated design, advanced manufacturing technology, the company continuously adapt to the market and provide products with better design, performance, efficiency and improved after-sale service, which is the Goal of Steeler people!
Contact Person: Megan Email: sales009@sinosteeler.com
Phone: 0086-15621188070 Whatsapp: 0086-15621188070
