AY214×8/5(8)HRC-B1 50ton cold press machine
- AY214×8/5(8)HRC-B1 50ton cold press machineTechnical Data Product name：HOT PRESS MA
- Hotline: 86-532-67703247
- Fax: 86-532-68067870
- Email:mike@sinosteeler.com
Detail
Contact Us

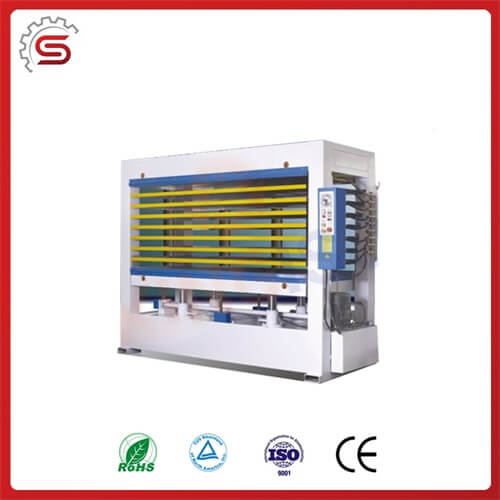

AY214×8/5(8)HRC-B1 50ton cold press machine
Technical Data
Product name： | HOT PRESS MACHINE |
Model： | |
Total pressure： | 50T |
Working layer： | 8 |
Platen No.& Size： | 2-2500x1300x38mm(Covered with mylar) |
Max Platen opening： | 100mm |
Cylinder No.& Dia： | 4-φ100mm |
Max temperature： | 120℃ |
Heating way： | Electric heating with thermic oil |
Heating medium: | Thermic oil |
Hydraulic pump power | 5.5kw |
Loading way： | Length side,Manually |
Voltage： | As per your request |
Packing： | Bare but properly secured |
Gross Weight： | About 8000.00 kg |
Overall dimension: | 3600x1710x2080mm |
Container need： | 1X20'GP |
Best FOBQINGDAO | 9000-15000USD/SET |
Payment： | 30% by T/T as deposit, 70% by T/T before shipment. |
Remark： | The S.S platen is prepared by user |
Delivery time: | 30 days |
Function:
Laminating hot press is fit for the furniture factory or panel decorative plant, which can make lamination for panel, such as wooden door, core board, MDF, Plywood, chipboard with all kinds of decorative paper HPL or veneer. It can also be used for drying or leveling veneer.
Quotation valid time: 30 days.
After sales: The seller will take charge of guide of the installation, while the buyer have to afford the international round ticket from leaving airport to destination, and other fees like accommodation, insurance in local. A Chinese interpreter is accompanying the guide.
Guarantee: mainframe 1 year and electric component for 6 months with effect from 30 days after arrival of the machine at discharge port.
FAQ
1) Q: What's the MOQ?
A: MOQ is one set.
2) Q: Provide custom machine Yes or No?
A: Yes. We can provide custom machine for clients.
3) Q: What's the payment terms?
A: T/T 30% in advance and balance before shipment or by negotiation.
4) Q: Are you factory or trade company?
A: We are factory and trade company. STEELER is our brand.
5) Q: How long is the warranty period?
A: One year warranty period except the quick-wear parts.
6) Q: Do you have professional engineers?
A: Yes. We have professional engineers and designers. We can provide OEM products.
Our Services
1.Good after-sale Services is our strength
1) The machine guarantee is 12 months.
2) 24 hours technical support by email or calling.
3) Friendly English version manual and operation video CD disc.
4)Our engineers can provide services to overseas.
2.Main Market
Which have been exported to a lot of country and Regions . Such as Europe , Russia, Southeast Asia . Middle East . North America
and south America , Australia .
3.Sample Service :
If you want to test the performance of machine ,we can sent sample to you with cost offer .
4.Customized Service :
Our factory has been specialized in producing woodworking machines for over 33 years .We have very high research and development capabilities to meet the requirements of custom.
5.We have years of manufacturing woodworking machine,OEM and ODM service available.
Contact Person: Megan Email: sales009@sinosteeler.com
Phone: 0086-15621188070 Whatsapp: 0086-15621188070
