SKS-1200 CNC boring machine for wood
- Working stroke & SpeedX axis: 1250mm Speed:
- Hotline: 86-532-67703247
- Fax: 86-532-68067870
- Email:mike@sinosteeler.com
Detail
Contact Us
Working stroke & Speed | X axis: 1250mm Speed: 45m/min |
Y axis: 1490mm Speed: 45m/min | |
A axis: 80mm Speed: 45m/min | |
Z axis: 50mm Speed: 45m/min | |
Drilling Unit | |
Vertical Spindle | 7(X axis) +9(Y axis) including Ø35mm drill holder |
Horizontal Spindle | 2(Left)+2(Right) and 1(Front)+1(Back) |
Motor power | 1.5kw, 4000r/min |
Router | |
Router type | Er32 |
Tool Shank Dia | Ø6,Ø8 |
Router power | 2.2kw |
Speed | 12000r/min |
Processing Size Range | |
Min work-piece width | 50mm |
Max work-piece width | 850mm |
Min work-piece length | 250mm |
Max work-piece thickness | 50mm |
Others | |
Working table height | 950mm |
Total power | 14kw |
Voltage | 380V/50HZ |
Air pressure | 0.6-0.8Mpa |
Weight | 2300KG |
Dimention | 2800x2300x1700mm |

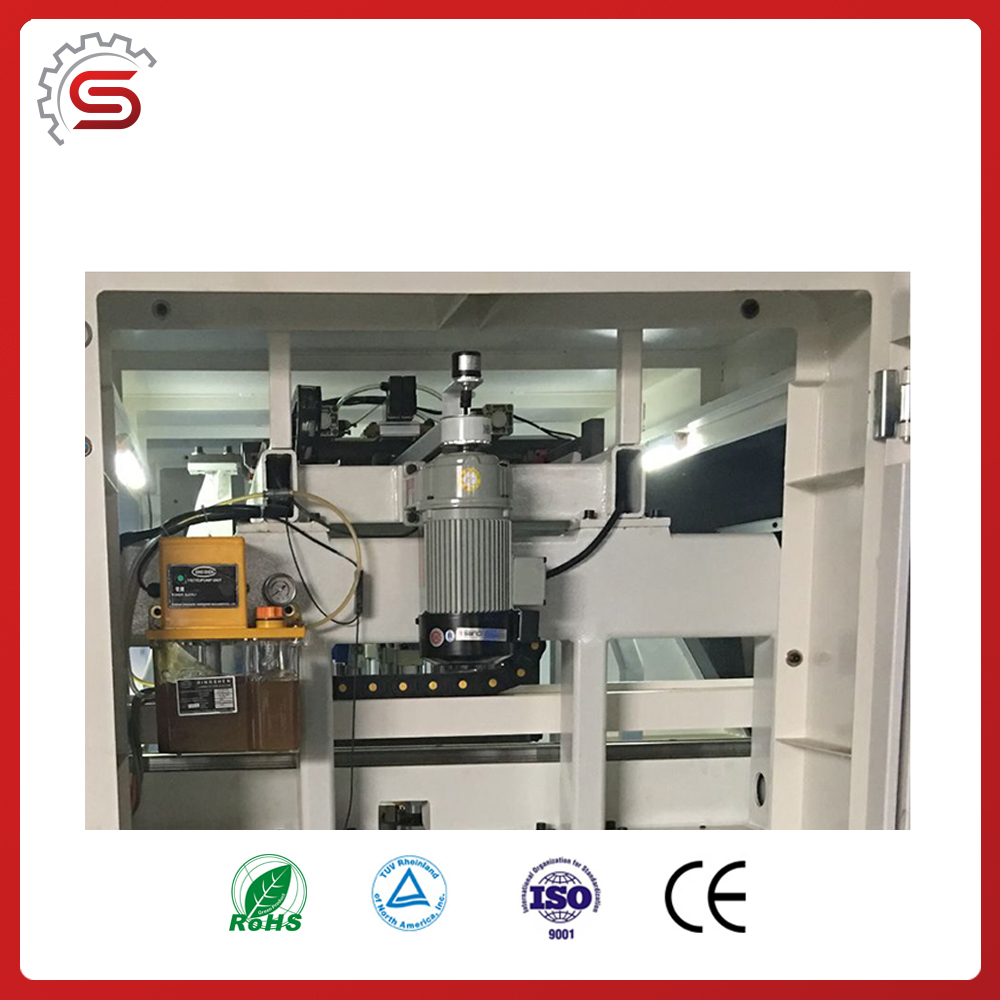

Detailed Images
