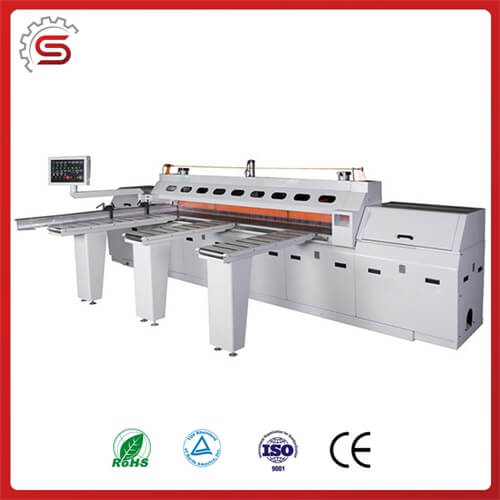

New Design MJB1333A Good Efficiency reciprocation panel saw
- Technical Parameter:ModelMJB1333AMax cutting length3280mmMax.cutting thickness76mmMai
- Hotline: 86-532-67703247
- Fax: 86-532-68067870
- Email:mike@sinosteeler.com
Detail
Contact Us
Technical Parameter:
Model | MJB1333A |
Max cutting length | 3280mm |
Max.cutting thickness | 76mm |
Main saw blade diameter | Φ350mm |
Main saw blade inner diameter | Φ30mm |
Main saw rotating speed | 4800rpm |
Scoring saw blade diameter | Φ180mm |
Scoring saw blade inner diameter | Φ30mm |
Scoring saw rotating speed | 6500rpm |
Saw carriage forward speed adjustable | 0-37m/min |
Saw carriage backward speed | 67m/min |
Main saw motor | 11kw |
Saw carriage driving motor | 1.5kw |
Total power | 12.5kw |
Air pressure | 5-7kg/cm² |
Working table height from ground level | 900mm |
Net weight | 3200kg |
Gross weight | 3300kg |
Overall dimension | 5830x3950x1700mm |
Product Details:
Packaging & Shipping:
1.The Packaging Details:Stretch film with wooden case or as your request!
2.Shipping:We have rich experience in exporting machines to the world and can supply all kinds of different shipping terms!
3.Timely delivery and transportation.
The factory warehouse:
Feature:
1.The main body by the high quality steel plate and profiles welded together.
2.Rail with high precision linear guide.
3.The machine electrical components mainly choose the foreign advanced products, security, stability.
4.Key type dust cover, less environment pollution.
5.Cutting speed with frequency control of motor speed, can be used different material cutting requirements.
6.Activity type tailgate, make the timber in and out of the unimpeded.
7.Humanized interface design, the operation is convenient, and reliable.
8.Automatic induction, sawing plate width automatically return the sawing, convenient, fast.
Our Services:
1.Good after-sale Services is our strength
1) The machine guarantee is 12 months.
2) 24 hours technical support by email or calling.
3) Friendly English version manual and operation video CD disc.
4)Our engineers can provide services to overseas.
2.Main Market
Which have been exported to a lot of country and Regions . Such as Europe , Russia, Southeast Asia . Middle East . North America and south America , Australia .
3.Sample Service:
If you want to test the performance of machine ,we can sent sample to you with cost offer .
4.Customized Service:
Our factory has been specialized in producing woodworking machines for over 33 years .We have very high research and development capabilities to meet the requirements of custom.
5.We have years of manufacturing woodworking machine,OEM and ODM service available.
Company Information:
Qingdao Steeler woodworking machinery co.,ltd is the professional production of various kinds of sanding machine,polishing machine and other mechanical equipment manufacturers.The company produced sanding machine which is a combination of Germany,Italy,Taiwan's good mechanical properties,structure and the advanced polishing machine not only draw lessons from the foreign advanced technology,and highlights the Steeler people development innovation,enterprising spirit,continuous research and development to adapt to the market,make our polishing machine series equipment industry's leading edge products.
We have already approved the ISO9000 International quality system certification and the main products through the national certification,access to the national key new products,high-tech products such as the honorary title,by the Chinese enterprise brand quality committee awarded the "National quality credit AAA grade credit enterprise"brand,the company products are sold well all over the world.
A strong R&D team,strong processing power,the reliable quality assurance,strict testing means make the company to win the trust of users.
Rich experience,sophisticated design,advanced manufacturing technology,as well as relevant to the users'communication,make the company continuously introduced to adapt to the market,meet the users of the new product.Quality,efficiency,service,integrity,modest is the goal of the Steeler People !
