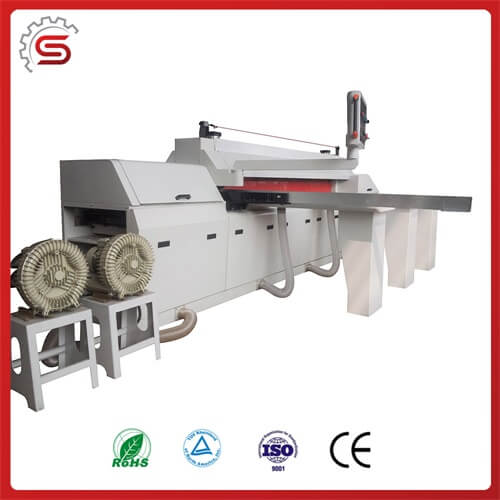

New Design MJB1333B reciprocation panel saw

  • Technical Parameter:ModelMJB1333BMax cutting length3280mmMax.cutting thickness76mmMai
  • Hotline: 86-532-67703247
  • Fax: 86-532-68067870
  • Email:mike@sinosteeler.com
  • Detail

  • Contact Us

Technical Parameter:

Model

MJB1333B

Max cutting length

3280mm

Max.cutting thickness

76mm

Main saw blade diameter

Φ350mm

Main saw blade inner diameter

Φ30mm

Main saw rotating speed

4800rpm

Scoring saw blade diameter

Φ180mm

Scoring saw blade inner diameter

Φ30mm

Scoring saw rotating speed

6500rpm

Saw carriage forward speed adjustable

0-37m/min

Saw carriage backward speed

67m/min

Main saw motor

11kw

Saw carriage driving motor

1.5kw

Total power

12.5kw

Air pressure

5-7kg/cm²

Working table height from ground level

900mm

Net weight

3200kg

Gross weight

3300kg

Overall dimension

5830x3950x1700mm

Product Details:

Packaging & Shipping

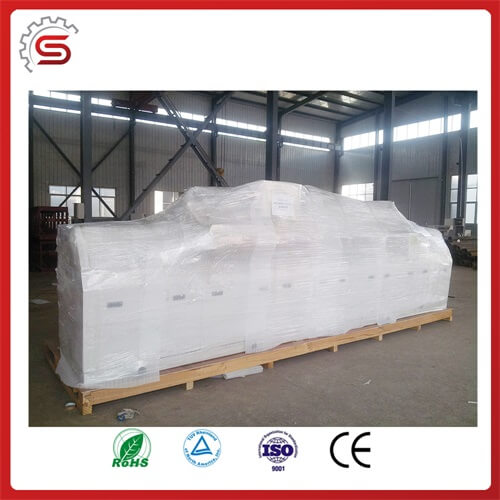

1.The Packaging Details:Stretch film with wooden case or as your request!



2.Shipping:We have rich experience in exporting machines to the world and can supply all kinds of different shipping terms!



3.Timely delivery and transportation.


The factory warehouse:

Feature:

1.The main body by the high quality steel plate and profiles welded together.

2.Rail with high precision linear guide.

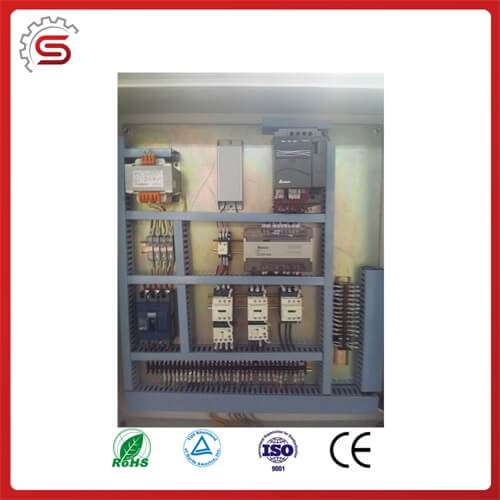

3.The machine electrical components mainly choose the foreign advanced products, security, stability.

4.Key type dust cover, less environment pollution.

5.Cutting speed with frequency control of motor speed, can be used different material cutting requirements.

6.Activity type tailgate, make the timber in and out of the unimpeded.

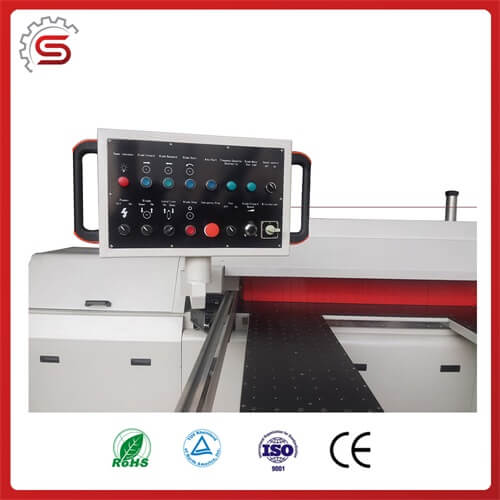

7.Humanized interface design, the operation is convenient, and reliable.

8.Automatic induction, sawing plate width automatically return the sawing, convenient, fast.

Our Services

1.Good after-sale Services is our strength

1) The machine guarantee is 12 months.

2) 24 hours technical support by email or calling.

3) Friendly English version manual and operation video CD disc.

4)Our engineers can provide services to overseas.

2.Main Market

Which have been exported to a lot of country and Regions . Such as Europe , Russia, Southeast Asia . Middle East . North America  and south America , Australia .

3.Sample Service:

If you want to test the performance of machine ,we can sent sample to you with cost offer .

4.Customized Service:

Our factory has been specialized in producing woodworking machines for over 33 years .We have very high research and development capabilities to meet the requirements of custom.

5.We have years of manufacturing woodworking machine,OEM and ODM service available.
